M3Z8V2C, M3Z2V0C 0.3W SILICON PLANAR ZENER DIODES

JINAN JINGHENG

Description

R SEMICONDUCTOR M3Z2V0C THRU M3Z75VC 0.3W SILICON PLANAR ZENER DIODES .

📥 Download Datasheet

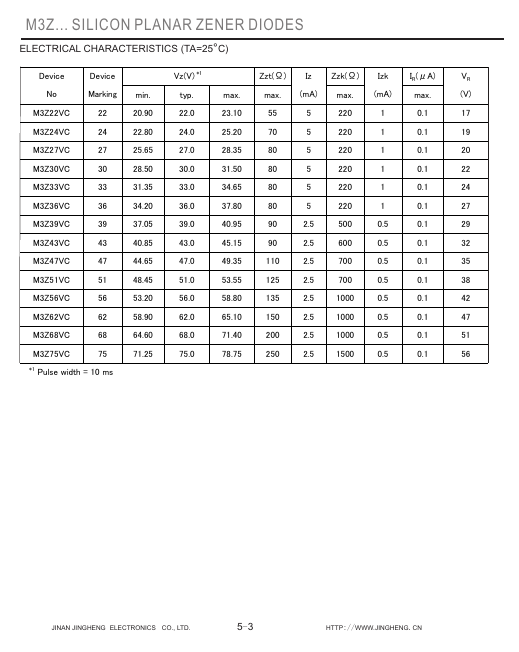

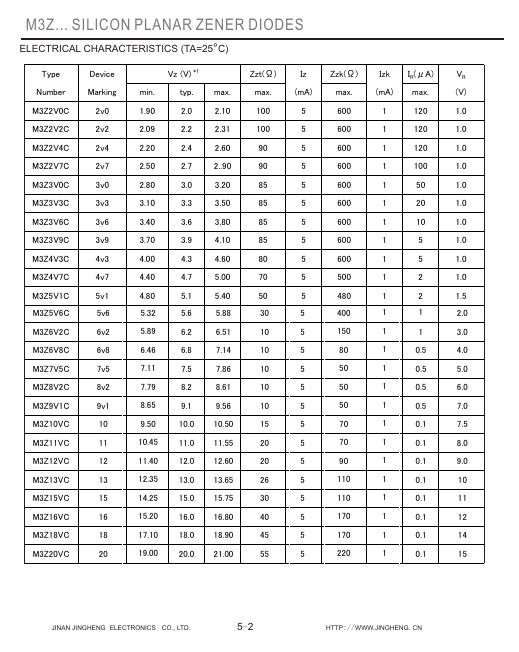

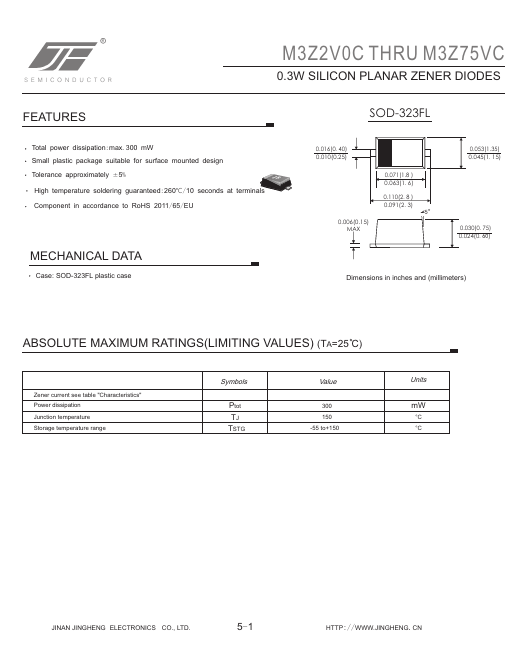

M3Z8V2C Datasheet Preview — This datasheet PDF includes multiple part numbers: M3Z8V2C, M3Z2V0C. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: M3Z8V2C, M3Z2V0C
Manufacturer: JINAN JINGHENG
File Size: 783.98 KB
Datasheet: M3Z2V0C-JINANJINGHENG.pdf
Description: 0.3W SILICON PLANAR ZENER DIODES
Note: This datasheet PDF includes multiple part numbers: M3Z8V2C, M3Z2V0C.
Please refer to the document for exact specifications by model.

Features

* Total power dissipation:max.300 mW Small plastic package suitable for surface mounted design Tolerance approximately ±5% JF High temperature soldering guaranteed:260℃/10 seconds at terminals Component in accordance to RoHS 2011/65/EU MECHANICAL DATA Case: SOD-323FL plastic case SOD-323FL 0.
