ECC81 - A. F. DOUBLE TRIODE

📥 Download Datasheet

Datasheet preview – ECC81

Datasheet Details

Part number ECC81
Manufacturer JJ
File Size 145.93 KB
Description A. F. DOUBLE TRIODE
Datasheet download datasheet ECC81 Datasheet
Additional preview pages of the ECC81 datasheet.

📁 Similar Datasheet

  • ECC81 - Double Triode (Ei-RC)
  • ECC81 - Double Triode 1955 (Philips)
  • ECC81 - Steile Doppeltriode (RFT)
  • ECC81 - R.F. Double Triode 1969 (Philips)
  • ECC81 - Receiving Valve (BRIMAR)
  • ECC81 - Beam Power Tube (RCA)
  • ECC81 - Double Triode (MAZDABELVU)
  • ECC81 - Double Triode (ETC)
  • ECC8100 - Twin Triode (TELEFUNKEN)
  • ECC812 - Double Triode (MAZDABELVU)
Other Datasheets by JJ

Full PDF Text Transcription

Click to expand full text

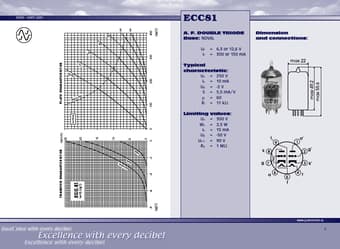

ECC81 - 12AT7, 6201 4 ECC81 A. F. DOUBLE TRIODE Base: NOVAL Uf = 6,3 or 12,6 V If = 300 or 150 mA Typical characteristic: Ua = 250 V Ia = 10 mA Ug = -2 V S = 5,5 mA/V µ = 60 Ri = 11 kΩ Limiting values: Ua = 300 V Wa = 2,5 W Ik = 15 mA Ug = -50 V Uk/f = 90 V Rg = 1 MΩ Dimension and connections: www.jj-electronic.
