ECC99 R. F. DOUBLE TRIODE

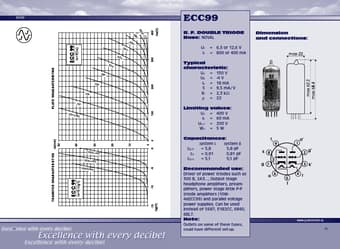

ECC99 14 ECC99 R. F. DOUBLE TRIODE Base: NOVAL Uf = 6,3 or 12,6 V If = 800 or 400 mA Typical characteristic: Ua = 150 V Ug = -4 V Ia = 18 mA S = 9,5 mA/V Ri = 2,3 kΩ µ = 22 Limiting values: Ua = 400 V Ik = 60 mA Uk/f = 200 V Wa = 5 W Capacitances: system I. system II. cg/k = 5,8 5,8 pF ca = 0,91 0,81 pF cg/a = 5,1 5,1 pF Recommanded use: Driver of power triodes such as 300 B, 2A3, Output stage headphone amplifiers, preamplifiers, power stage little P-P triode amplifiers (10W4xECC99.

ECC99 Datasheet (164.96 KB)

ECC99 Datasheet Preview — Preview of ECC99 PDF

Datasheet Details

Part number:

ECC99

Manufacturer:

File Size:

164.96 KB

Description:

R. f. double triode.
