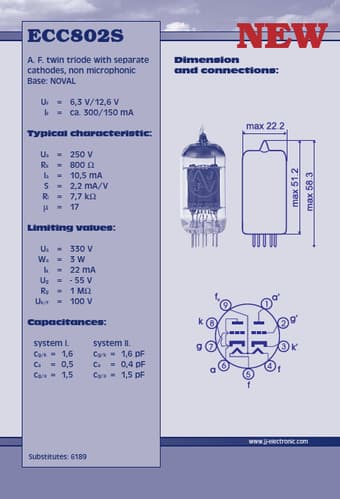

ECC802S - A. F. twin triode
ECC802S A.
F.
twin triode with separate cathodes, non microphonic Base: NOVAL Uf = 6,3 V/12,6 V If = ca.
300/150 mA Typical characteristic: Ua = 250 V Rk = 800 Ω Ia = 10,5 mA S = 2,2 mA/V Ri = 7,7 kΩ µ = 17 Limiting values: Ua = 330 V Wa = 3 W Ik = 22 mA Ug = - 55 V Rg = 1 MΩ Uk/f = 100 V Capacitances: system I.
cg/k = 1,6 ca = 0,5 cg/a = 1,5 system II.
cg/k = 1,6 pF ca = 0,4 pF cg/a = 1,5 pF NEW Dimension and connections: Substitutes: 6189 wwwww.wjj-.ejjl-eecletrcotrnoicn.icco.smk
