NJM2204A Datasheet, Amplifier, JRC

NJM2204A Features

  • Amplifier
  • Wide log dynamic range
  • Wide linearity range
  • Large Voltage Gain
  • Wide stable operating supply voltage range
  • Wide stable operating tempera

PDF File Details

Part number:

NJM2204A

Manufacturer:

JRC

File Size:

183.60kb

Download:

📄 Datasheet

Description:

Log amplifier. The NJM2204A is an integrated IF limitting amplifier which contains temperature compensated reference power supply, 6 stage different

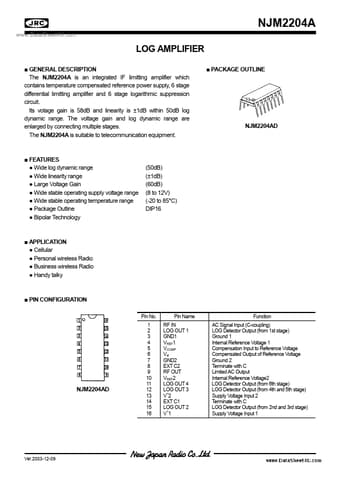

Datasheet Preview: NJM2204A 📥 Download PDF (183.60kb)
