NJM2207M

VIDEO SUPER IMPOSER

NJM2207M Features

* Operating Voltage (+4.75V to +13V)

* With Synchronous Separation Circuit

* With Vertical Synchronous Reproduce Circuit

* Package Outline DIP14, DMP14, ZIP16

* Bipolar Technology

* RECOMMENDED OPERATING CONDITION

* Operating Voltage 4.75 to 13V

* PACKAGE O

NJM2207M General Description

The NJM2207 is video signal superimposer, with synchronous separation circuit, vertical sinchronous reproduce circuit and two video high performance switches for switching from video signal to character signal and background signal. The NJM2207 is suitable for simply indicating the date time, TV cha.

NJM2207M Datasheet (163.04 KB)

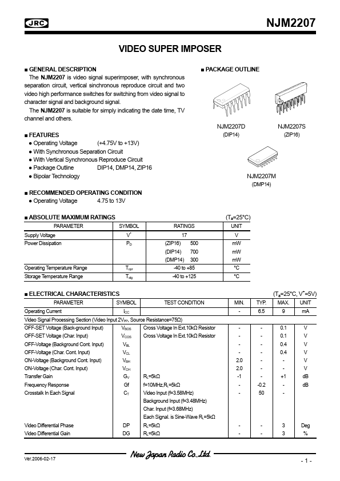

Preview of NJM2207M PDF
