NJM2207 Datasheet, Imposer, New Japan Radio

NJM2207 Features

  • Imposer
  • Operating Voltage (+4.75V to +13V)
  • With Synchronous Separation Circuit
  • With Vertical Synchronous Reproduce Circuit
  • Package Outline DIP14, D

PDF File Details

Part number:

NJM2207

Manufacturer:

New Japan Radio

File Size:

163.04kb

Download:

📄 Datasheet

Description:

Video super imposer. The NJM2207 is video signal superimposer, with synchronous separation circuit, vertical sinchronous reproduce circuit and two video h

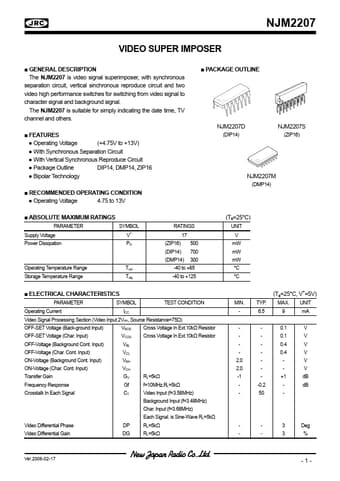

Datasheet Preview: NJM2207 📥 Download PDF (163.04kb)
