NJM2888 - LOW DROPOUT VOLTAGE REGULATOR

JRC

📥 Download Datasheet

NJM2888 Datasheet Preview — Preview of NJM2888 PDF

Datasheet Details

Part number	NJM2888
Manufacturer	JRC
File Size	201.40 KB
Description	LOW DROPOUT VOLTAGE REGULATOR
Datasheet	NJM2888_JRC.pdf

NJM2888 Product details

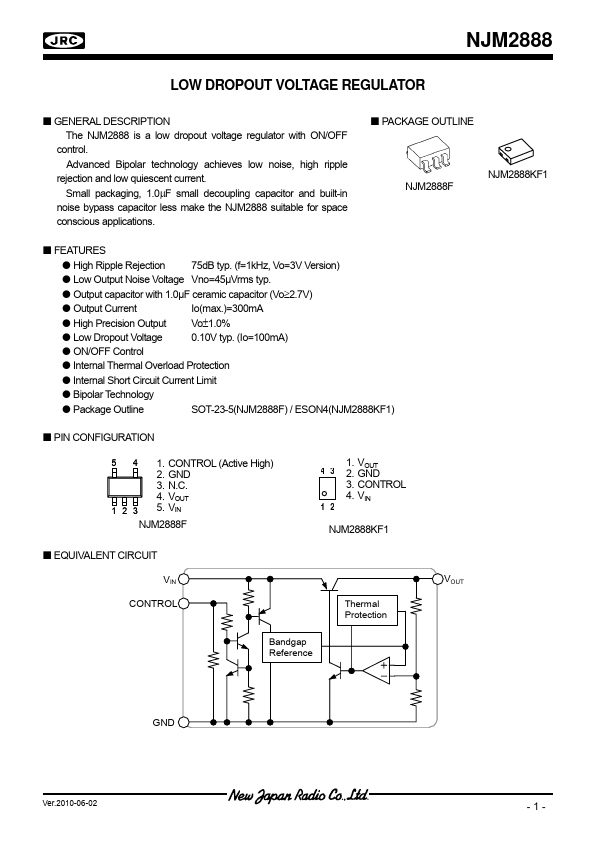

Description

The NJM2888 is a low dropout voltage regulator with ON/OFF control.Advanced Bipolar technology achieves low noise, high ripple rejection and low quiescent current.Small packaging, 1.0µF small decoupling capacitor and built-in noise bypass capacitor less make the NJM2888 suitable for space conscious applications.PACKAGE OUTLINE NJM2888F NJM2888KF1

Features

High Ripple Rejection 75dB typ. (f=1kHz, Vo=3V Version) Low Output Noise Voltage Vno=45µVrms typ. Output capacitor with 1.0µF ceramic capacitor (Vo≥2.7V) Output Current Io(max. )=300mA High Precision Output Vo±1.0% Low Dropout Voltage 0.10V typ. (Io=100mA) ON/OFF Control Internal Thermal Overload Protection Internal Short Circuit Current Limit Bipolar Technology Package Outline SOT-23-5(NJM2888F) / ESON4(NJM2888KF1) PIN.
