NJM2886 LOW DROPOUT VOLTAGE REGULATOR

NJM2886 Description

NJM2886 LOW DROPOUT VOLTAGE REGULATOR GENERAL .
The NJM2886 is low dropout voltage regulator designed for portable application.

NJM2886 Features

* High Ripple Rejection 75dB typ. (f=1kHz,Vo=3V Version) Output Noise Voltage Vno=45µVrms typ. Output capacitor with 2.2µF ceramic capacitor (Vo≥2.7V) Output Current Io(max. )=500mA High Precision Output Low Dropout Voltage Vo±1.0% 0.18V typ. (Io=300mA) ON/OFF Contorol Internal Short Circuit

📥 Download Datasheet

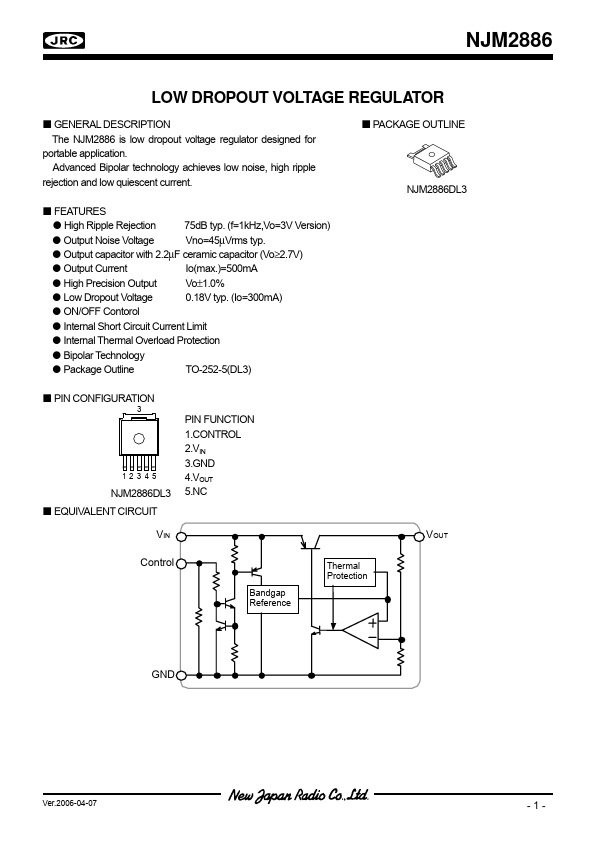

Preview of NJM2886 PDF

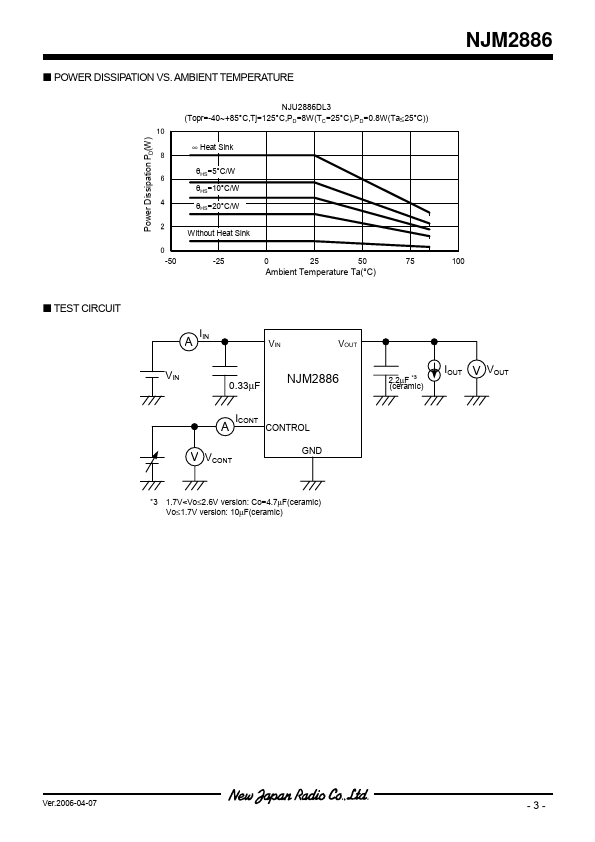

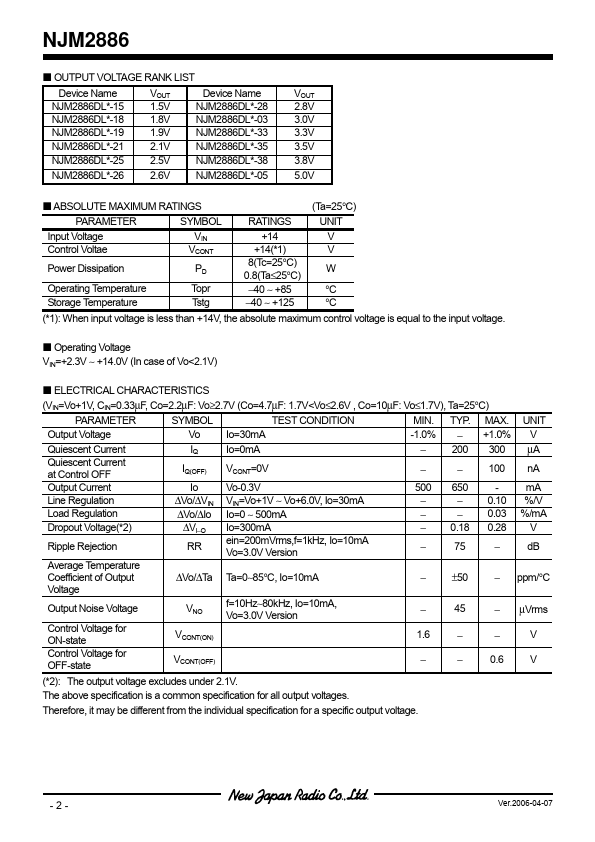

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NJM2886
Manufacturer
New Japan Radio
File Size
209.45 KB
Datasheet
NJM2886_NewJapanRadio.pdf
Description
LOW DROPOUT VOLTAGE REGULATOR
