NJM2887 - ADJUSTABLE LOW DROPOUT VOLTAGE REGULATOR

New Japan Radio

📥 Download Datasheet

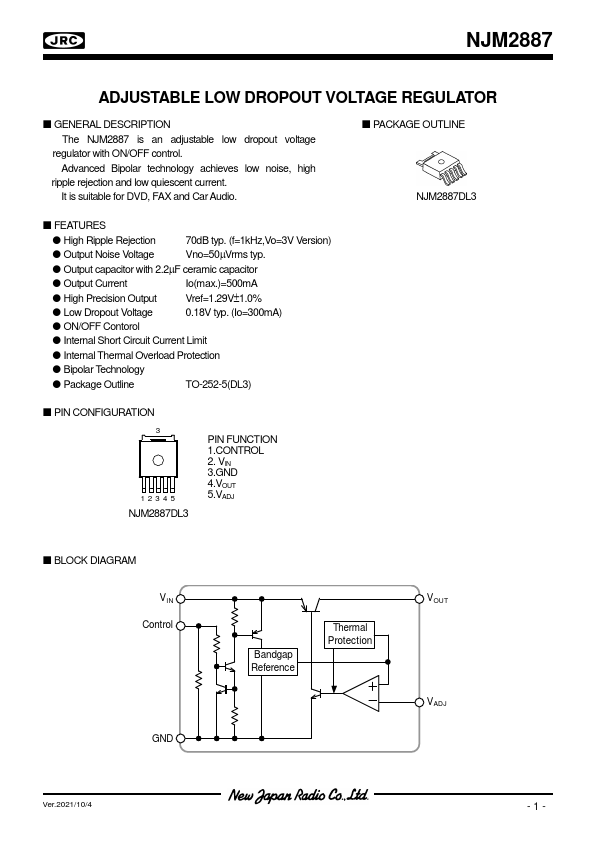

NJM2887 Datasheet Preview — Preview of NJM2887 PDF

Datasheet Details

Part number	NJM2887
Manufacturer	New Japan Radio
File Size	621.39 KB
Description	ADJUSTABLE LOW DROPOUT VOLTAGE REGULATOR
Datasheet	NJM2887_NewJapanRadio.pdf

NJM2887 Product details

Description

The NJM2887 is an adjustable low dropout voltage regulator with ON/OFF control.Advanced Bipolar technology achieves low noise, high ripple rejection and low quiescent current.It is suitable for DVD, FAX and Car Audio. PACKAGE OUTLINE NJM2887DL3

Features

S  High Ripple Rejection 70dB typ. (f=1kHz,Vo=3V Version)  Output Noise Voltage Vno=50Vrms typ.  Output capacitor with 2.2F ceramic capacitor  Output Current Io(max. )=500mA  High Precision Output Vref=1.29V1.0%  Low Dropout Voltage 0.18V typ. (Io=300mA)  ON/OFF Contorol  Internal Short Circuit Current Limit  Internal Thermal Overload Protection  Bipolar Technology  Package Outline TO-252-5(DL3).
PIN.
