NJU26202 - Digital Signal Processor

JRC

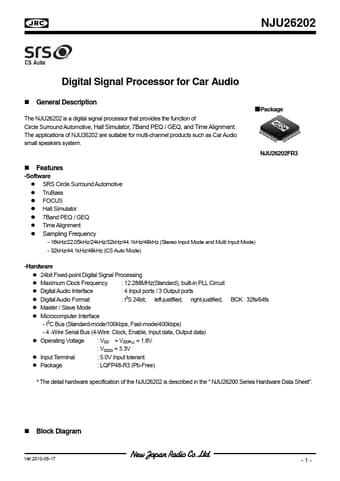

NJU26202 Datasheet Preview — Preview of NJU26202 PDF

Datasheet Details

Part number	NJU26202
Manufacturer	JRC ↗
File Size	296.19 KB
Description	Digital Signal Processor
Datasheet	NJU26202_JRC.pdf

NJU26202 Product details

Description

The NJU26202 is a digital signal processor that provides the function of Circle Surround Automotive, Hall Simulator, 7Band PEQ / GEQ, and Time Alignment. Package NJU26202FR3

Features

-Software SRS Circle Surround Automotive TruBass FOCUS Hall Simulator 7Band PEQ / GEQ Time Alignment Sampling Frequency - 16kHz/22.05kHz/24kHz/32kHz/44.1kHz/48kHz (Stereo Input Mode and Multi Input Mode) - 32kHz/44.1kHz/48kHz (CS Auto Mode) -Hardware 24bit Fixed-point Digital Signal Processing Maximum Clock Frequency : 12.288MHz(Standard), built-in PLL Circuit Digital Audio Interface : 4 Input ports / 3 Output ports Digital Audio Format : I2S 24bit, left-justified, right-justified, Maste.
