NJU6048 Datasheet - JRC

High Efficiency White LED Driver

NJU6048 Features

* low operating voltage of 1.7V and the small package SOT-23 (MTP-5). All of these benefits make the NJU6048 suitable for the battery-powered portable applications such as cellular phones, camcorders, PDAs, etc. ! PACKAGE OUTLINE NJU6048F ! FEATURES # Drives Up to 4White LEDs in Series IOUT = 20mA(

NJU6048 General Description

The NJU6048 is a high-efficiency white LED driver. It contains a high-efficiency step-up DC/DC converter and an output driver. The IC can output max.18V and drive as many as 4 white LEDs in series with a constant current, which guarantees the LEDs with uniform brightness. The high frequency of the s.

NJU6048 Datasheet (200.83 KB)

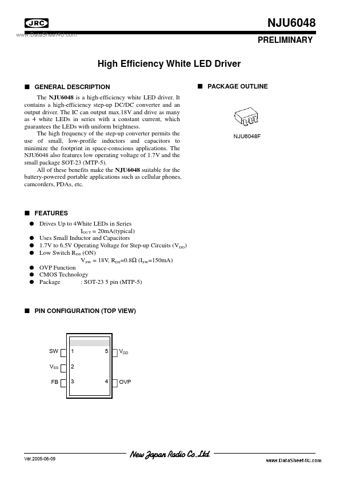

NJU6048 Datasheet Preview — Preview of NJU6048 PDF

Datasheet Details

Part number:

NJU6048

Manufacturer:

JRC

File Size:

200.83 KB

Description:

High efficiency white led driver.
