NJU6049

High Efficiency White LED Driver

NJU6049 Features

* low operating voltage of 1.7V and the small package VSP10. All of these benefits make the NJU6049 suitable for the battery-powered portable applications such as cellular phones, camcorders, PDAs, etc. ! PACKAGE OUTLINE NJU6049R ! FEATURES # Drives Up to 4White LEDs in Series IOUT = 20mA(typical)

NJU6049 General Description

The NJU6049 is a high-efficiency white LED driver. It contains a high-efficiency step-up DC/DC converter and an output driver. The IC can output max.18V and drive as many as 4 white LEDs in series with a constant current, which guarantees the LEDs with uniform brightness. The high frequency of the s.

NJU6049 Datasheet (203.32 KB)

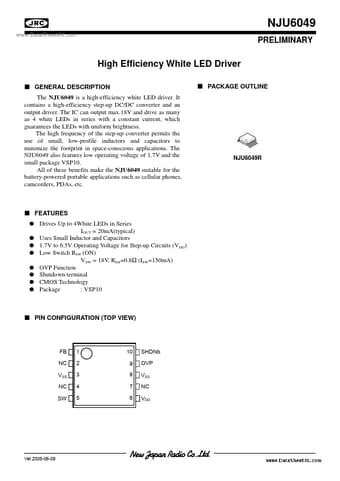

Preview of NJU6049 PDF

Datasheet Details

Part number:

NJU6049

Manufacturer:

JRC

File Size:

203.32 KB

Description:

High efficiency white led driver.
