NJU6010 - 24 keys input key-scan IC

NJU6010 Description

NJU6010 24 keys input key-scan IC GENERAL .
The NJU6010 is 24 keys input key-scan IC with internal oscillation.

NJU6010 Features

* Key-scan Function (Maximum matrix 4 x 6 = 24-key) Serial Data Transmission (Shift Clock 2MHz max. ) Oscillation Circuit On-chip Power On Reset Function Operating Voltage 2.4 to 5.5V C-MOS Technology P-Sub Package Outline SSOP16 BLOCK DIAGRAM VDD VSS TEST DATA CSb SCL K0~K5 S0~S3 OSC Circ

📥 Download Datasheet

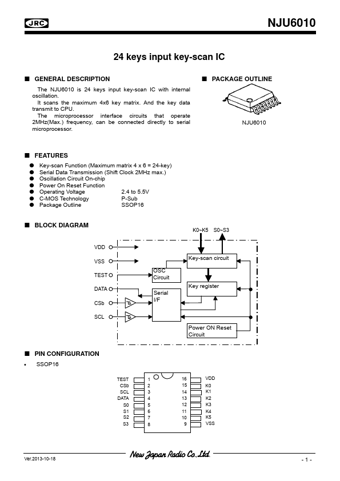

Preview of NJU6010 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NJU6010
Manufacturer
New Japan Radio
File Size
179.26 KB
Datasheet
NJU6010-NewJapanRadio.pdf
Description
24 keys input key-scan IC
