JE05B1UD10-2L, JE05B1UD10-2L-Jelan 1-Line Bi-directional TVS Diode

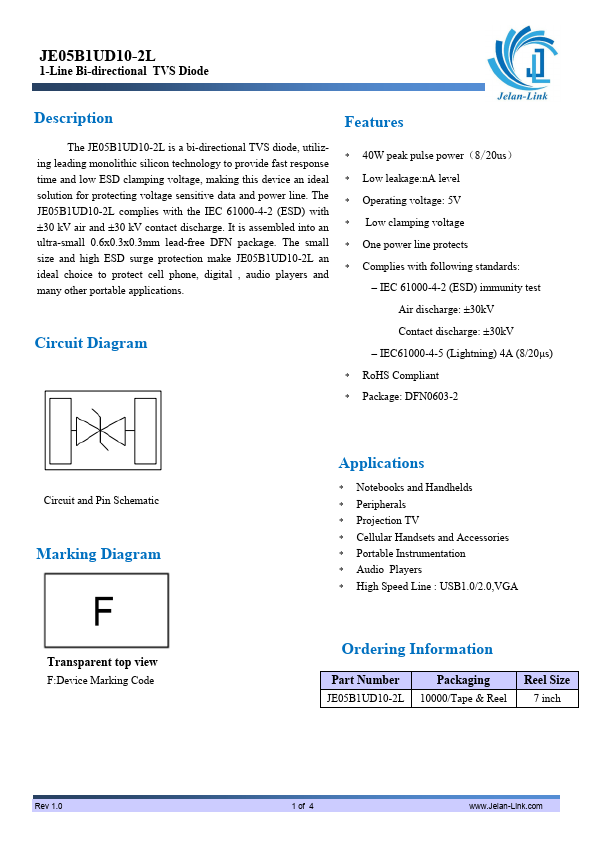

Description

JE05B1UD10-2L 1-Line Bi-directional TVS Diode .
Features The JE05B1UD10-2L is a bi-directional TVS diode, utilizing leading monolithic silicon technology to provide fast response time and low ESD.

📥 Download Datasheet

JE05B1UD10-2L Datasheet Preview — This datasheet PDF includes multiple part numbers: JE05B1UD10-2L, JE05B1UD10-2L-Jelan. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: JE05B1UD10-2L, JE05B1UD10-2L-Jelan
Manufacturer: Jelan-Link
File Size: 626.43 KB
Datasheet: JE05B1UD10-2L-Jelan-Link.pdf
Description: 1-Line Bi-directional TVS Diode
Note: This datasheet PDF includes multiple part numbers: JE05B1UD10-2L, JE05B1UD10-2L-Jelan.
Please refer to the document for exact specifications by model.

Features

* The JE05B1UD10-2L is a bi-directional TVS diode, utilizing leading monolithic silicon technology to provide fast response time and low ESD clamping voltage, making this device an ideal solution for protecting voltage sensitive data and power line. The JE05B1UD10-2L complies with the IEC 61000-4-2 (

Applications

* Circuit Diagram  40W peak pulse power（8/20us）  Low leakage:nA level  Operating voltage: 5V  Low clamping voltage  One power line protects  Complies with following standards:
* IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
* IEC61000-4-5 (Ligh
