JE05U1RD20-2, JE05U1RD20-2-Jelan 1-Line Uni-directional TVS Diode

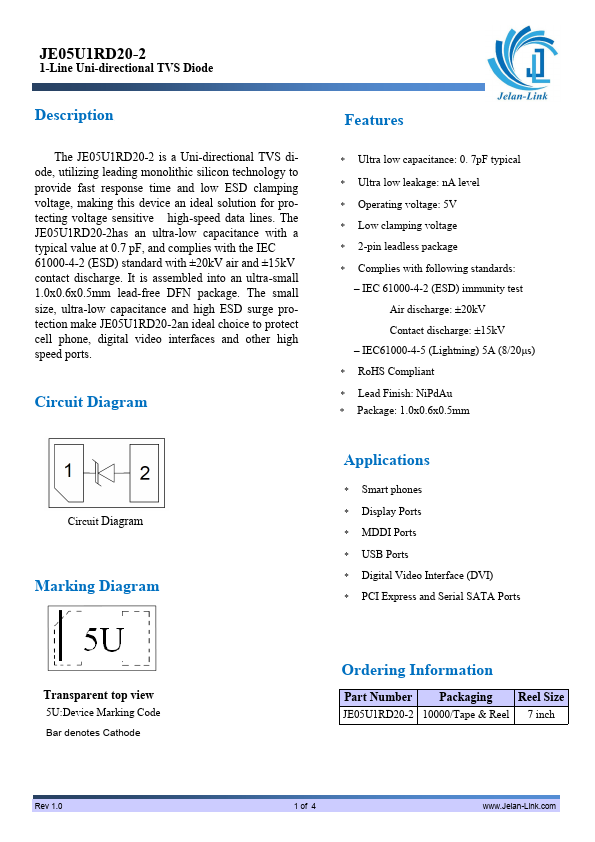

Description

JE05U1RD20-2 1-Line Uni-directional TVS Diode .
The JE05U1RD20-2 is a Uni-directional TVS diode, utilizing leading monolithic silicon technology to provide fast response time and low ESD clamping vo.

📥 Download Datasheet

JE05U1RD20-2 Datasheet Preview — This datasheet PDF includes multiple part numbers: JE05U1RD20-2, JE05U1RD20-2-Jelan. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: JE05U1RD20-2, JE05U1RD20-2-Jelan
Manufacturer: Jelan-Link
File Size: 973.08 KB
Datasheet: JE05U1RD20-2-Jelan-Link.pdf
Description: 1-Line Uni-directional TVS Diode
Note: This datasheet PDF includes multiple part numbers: JE05U1RD20-2, JE05U1RD20-2-Jelan.
Please refer to the document for exact specifications by model.

Features

*  Ultra low capacitance: 0.7pF typical  Ultra low leakage: nA level  Operating voltage: 5V  Low clamping voltage  2-pin leadless package  Complies with following standards:
* IEC 61000-4-2 (ESD) immunity test Air discharge: ±20kV Contact discharge: ±15kV
* IEC61000-4-5 (Lightnin

Applications

*  Smart phones  Display Ports  MDDI Ports  USB Ports  Digital Video Interface (DVI)  PCI Express and Serial SATA Ports Transparent top view 5U:Device Marking Code Bar denotes Cathode Ordering Information Part Number Packaging Reel Size JE05U1RD20-2 10000/Tape & Reel 7 inch Rev 1.0 1 of 4 w
