JE05U1RD21-2, JE05U1RD21-2-Jelan - 1-Line Uni-directional TVS Diode

JE05U1RD21-2 Datasheet Preview — This datasheet PDF includes multiple part numbers: JE05U1RD21-2, JE05U1RD21-2-Jelan. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	JE05U1RD21-2, JE05U1RD21-2-Jelan
Manufacturer	Jelan-Link
File Size	0.98 MB
Description	1-Line Uni-directional TVS Diode
Datasheet	JE05U1RD21-2-Jelan-Link.pdf
Note	This datasheet PDF includes multiple part numbers: JE05U1RD21-2, JE05U1RD21-2-Jelan. Please refer to the document for exact specifications by model.

JE05U1RD21-2 Product details

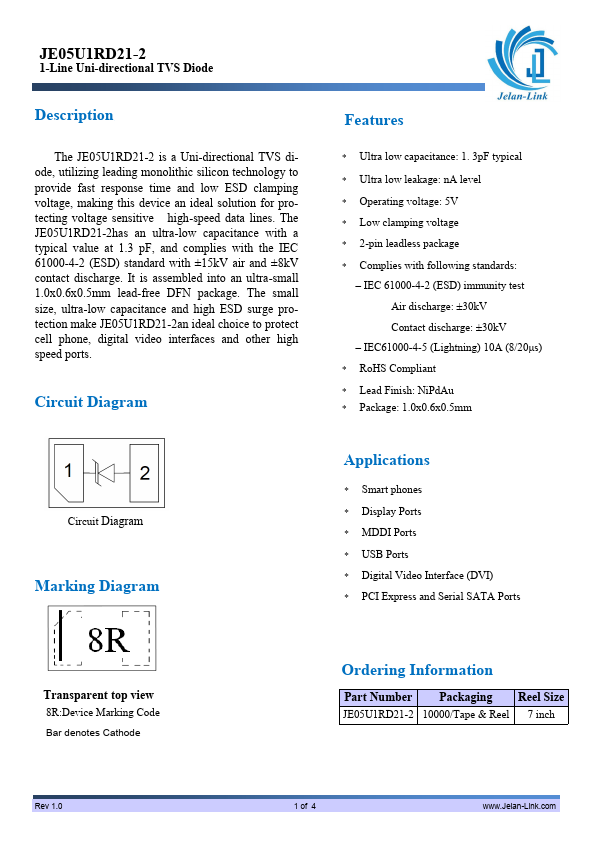

Description

The JE05U1RD21-2 is a Uni-directional TVS diode, utilizing leading monolithic silicon technology to provide fast response time and low ESD clamping voltage, making this device an ideal solution for protecting voltage sensitive high-speed data lines.

Features

 Ultra low capacitance: 1.3pF typical  Ultra low leakage: nA level  Operating voltage: 5V  Low clamping voltage  2-pin leadless package  Complies with following standards:.
IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV.
IEC61000-4-5 (Lightning) 10A (8/20μs)  RoHS Compliant  Lead Finish: NiPdAu  Package: 1.0x0.6x0.5mm Circuit Diagram Marking Diagram.
