HBR10150 - SCHOTTKY BARRIER DIODE

HBR10150 Description

R SCHOTTKY BARRIER DIODE HBR10150 MAIN CHARACTERISTICS Package IF(AV) VRRM Tj VF(max) 10（2×5）A 150 V 175 ℃ 0.72V （@Tj=125℃） z z APPLICATI.
of Changes 2011-08-09 201002I 201108J Changed IFSM Spec.

HBR10150 Features

* zCommon cathode structure zLow power loss, high efficiency zHigh Operating Junction Temperature zGuard ring for overvoltage protection，High reliability zRoHS product TO-22O TO-22OBF TO-22OF TO-22OHF ORDER MESSAGE Order codes Marking Package HBR10150Z HBR10150 TO-220 HBR10150ZR HBR10

📥 Download Datasheet

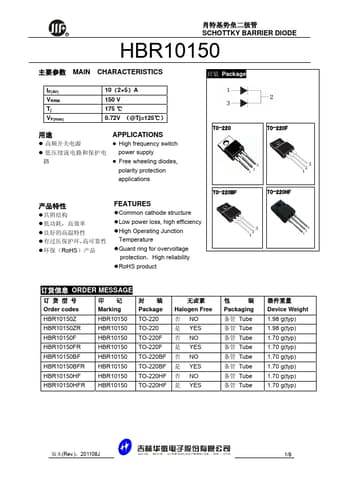

Preview of HBR10150 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HBR10150
Manufacturer
Jilin Sino
File Size
330.54 KB
Datasheet
HBR10150-JilinSino.pdf
Description
SCHOTTKY BARRIER DIODE
