HBR10150BF, HBR10150, SCHOTTKY BARRIER DIODE

R SCHOTTKY BARRIER DIODE HBR10150 MAIN CHARACTERISTICS Package IF(AV) VRRM Tj VF(max) 10（2×5）A 150 V 175 ℃ 0.72V （@Tj=125℃） z z APPLICATI.
of Changes 2011-08-09 201002I 201108J Changed IFSM Spec.

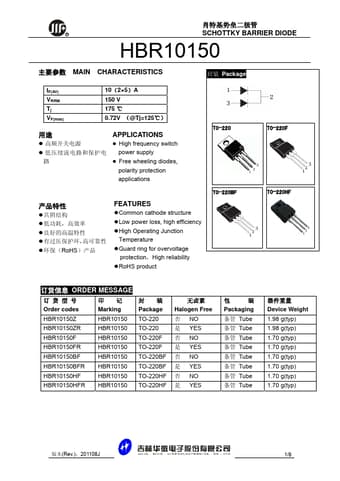

datasheet Preview Page 1 from Datasheet4u.com

HBR10150-JilinSino.pdf

HBR10150BF Datasheet Preview — This datasheet PDF includes multiple part numbers: HBR10150BF, HBR10150. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HBR10150BF, HBR10150

Manufacturer:

Jilin Sino

File Size:

330.54 KB

Description:

SCHOTTKY BARRIER DIODE

Note:

This datasheet PDF includes multiple part numbers: HBR10150BF, HBR10150.
Please refer to the document for exact specifications by model.

Features

* zCommon cathode structure zLow power loss, high efficiency zHigh Operating Junction Temperature zGuard ring for overvoltage protection，High reliability zRoHS product TO-22O TO-22OBF TO-22OF TO-22OHF ORDER MESSAGE Order codes Marking Package HBR10150Z HBR10150 TO-220 HBR10150ZR HBR10
