MBR4060W, MBR4060 SCHOTTKY BARRIER DIODE

MBR4060W Description

R SCHOTTKY BARRIER DIODE MBR4060 MAIN CHARACTERISTICS Package IF(AV) VRRM Tj VF(max) 40（2×20）A 60 V 150 ℃ 0.65V （@Tj=125℃） * * AP.
of Changes (Rev):201408A 8/8.

MBR4060W Features

* Common cathode structure
* Low power loss, high efficiency
* High Operating Junction Temperature
* Guard ring for overvoltage protection，High reliability
* RoHS product ORDER MESSAGE Order codes Marking Package MBR4060Z MBR4060 TO-220 MBR4060ZR MBR4060 TO-220 MBR4060HF

MBR4060W Applications

* High frequency switch power supply
* Free wheeling diodes, polarity protection applications
* ，
* ，

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBR4060W, MBR4060. Please refer to the document for exact specifications by model.

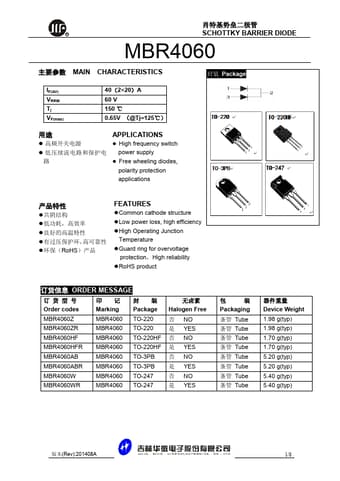

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBR4060W, MBR4060
Manufacturer
Jilin Sino
File Size
358.02 KB
Datasheet
MBR4060-JilinSino.pdf
Description
SCHOTTKY BARRIER DIODE
Note
This datasheet PDF includes multiple part numbers: MBR4060W, MBR4060.
Please refer to the document for exact specifications by model.
