MD1825T-QA - Intelligent Power Module

Jilin Sino

MD1825T-QA Description

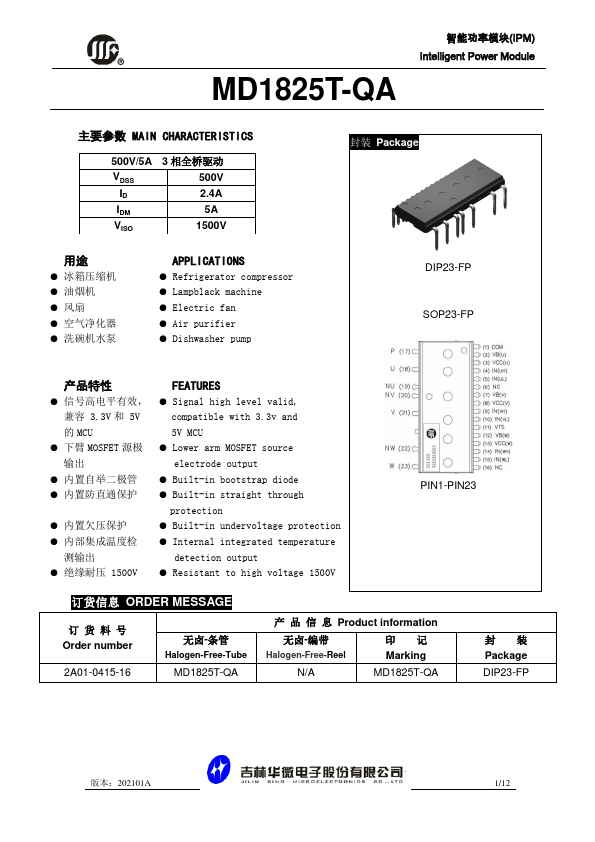

MD1825T-QA (IPM) Intelligent Power Module MAIN CHARACTERISTICS 500V/5A VDSS ID IDM VISO 3 500V 2.4A 5A 1500V * * * * *.

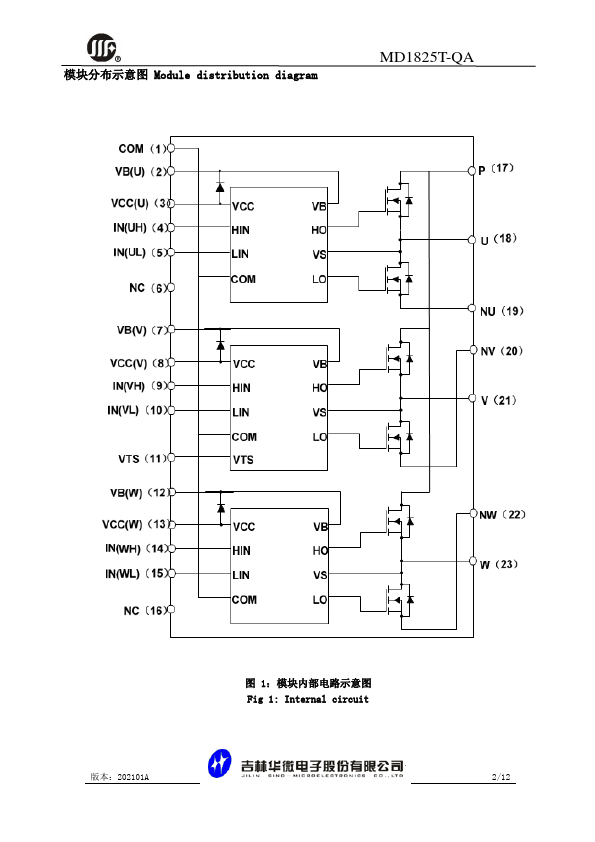

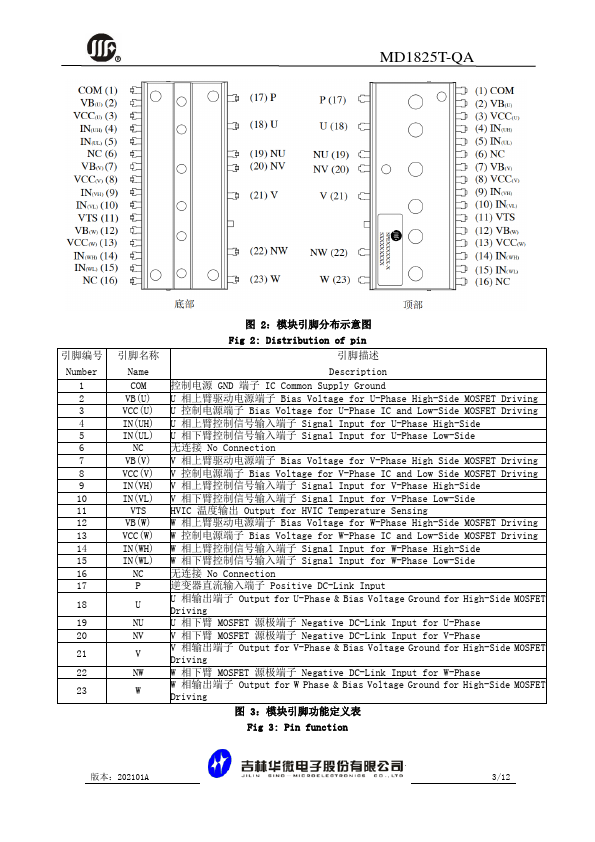

GND IC Common Supply Ground U Bias Voltage for U-Phase High-Side MOSFET Driving U Bias Voltage for U-Phase IC and Low-Side MOSFET Driving U Signa.

MD1825T-QA Features

* Signal high level valid, compatible with 3.3v and 5V MCU
* Lower arm MOSFET source electrode output
* Built-in bootstrap diode
* Built-in straight through protection
* Built-in undervoltage protection
* Internal integrated temperature detection output
* Resistant to hig

MD1825T-QA Applications

* Refrigerator compressor
* Lampblack machine
* Electric fan
* Air purifier
* Dishwasher pump Package DIP23-FP SOP23-FP
* ， 3.3V 5V MCU
* MOSFET

📥 Download Datasheet

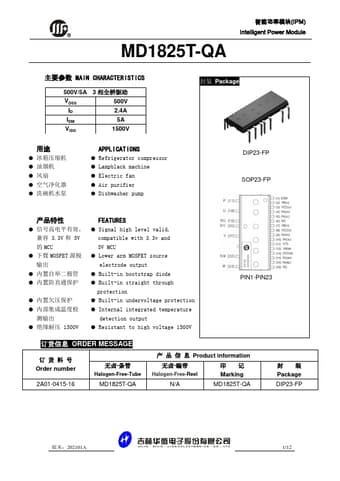

MD1825T-QA Datasheet Preview — Preview of MD1825T-QA PDF

Datasheet Details

Part number: MD1825T-QA
Manufacturer: Jilin Sino
File Size: 1.04 MB
Datasheet: MD1825T-QA-JilinSino.pdf
Description: Intelligent Power Module
