MD1820

Four Channel MOSFET Driver

Supertex

MD1820 Features

* Non-inverting, four channel MOSFET driver

* 6.0ns rise and fall time

* 2.0A peak output source/sink current

* 1.8 to 5.0V input CMOS compatible

* 5.0 to 10V total supply voltage

* Smart logic threshold

* Low jitter design

* Fo

MD1820 General Description

The Supertex MD1820 is a high speed, four channel MOSFET driver designed to drive high voltage P- and N-channel MOSFETs for medical ultrasound applications and other applications requiring a high output current for a capacitive load. The high-speed input stage of the MD1820 can operate from a 1.8 to.

MD1820 Datasheet (386.06 KB)

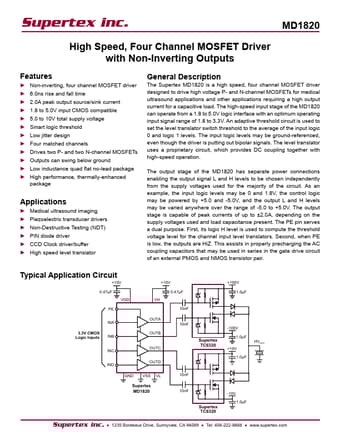

MD1820 Datasheet Preview — Preview of MD1820 PDF

Datasheet Details

Part number:

MD1820

Manufacturer:

Supertex

File Size:

386.06 KB

Description:

Four channel mosfet driver.
