MD1210 Datasheet, Driver, Supertex

MD1210 Features

  • Driver 6.0ns rise and fall time with 1000pF load 2.0A peak output source/sink current 1.2V to 5V input CMOS compatible 4.5V to 13V total supply voltage Smart Logic threshold Low jitter design

PDF File Details

Part number:

MD1210

Manufacturer:

Supertex

File Size:

211.07kb

Download:

📄 Datasheet

Description:

High speed dual mosfet driver. The Supertex MD1210 is a high speed, dual MOSFET driver. It is designed to drive high voltage N- and P-channel MOSFET transistors for

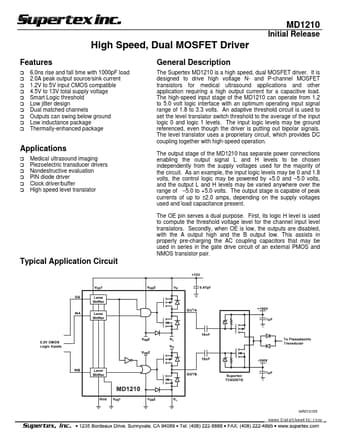

Datasheet Preview: MD1210 📥 Download PDF (211.07kb)
Page 2 of MD1210 Page 3 of MD1210

MD1210 Application

  • Applications and other application requiring a high output current for a capacitive load. The high-speed input stage of the MD1210 can operate from
