MD1712

Integrated Ultrasound Driver IC

MD1712 Features

* Drives two ultrasound transducer channels

* Generates five-level waveform

* Drives 12 high voltage MOSFETs

* ±2.0A source and sink peak current

* Up to 20MHz output frequency

* 12V/ns slew rate

* ±3.0ns matched delay times

* Second ha

MD1712 General Description

The Supertex MD1712 is a two-channel, five-level, high voltage and high speed transmitter driver IC. It is designed for medical ultrasound imaging applications, but can also be used for metal flaw detection, Non-Destructive Testing (NDT), and for driving piezoelectric transducers. The MD1712 is a tw.

MD1712 Datasheet (494.64 KB)

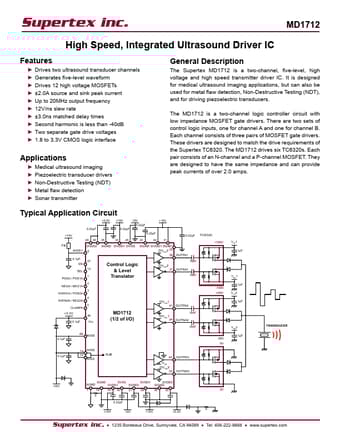

Preview of MD1712 PDF

Datasheet Details

Part number:

MD1712

Manufacturer:

Supertex

File Size:

494.64 KB

Description:

Integrated ultrasound driver ic.
