MD1716

Ultrasound Driver IC

MD1716 Features

* Advanced CMOS technology

* 4.5 to 12.5V power supply voltage

* 2.0A output source and sink current

* 6.5ns rise and fall time with 1.0nF load

* 10ns propagation delay

* ±2ns matched delay times

* 12 matched channels

* 1.8 to 3

MD1716 General Description

The Supertex MD1716, paired with the Supertex TC8020, forms a three channel, three level, high voltage, high speed, transmit pulser chip set. The chip set is designed for medical ultrasound imaging applications but can also be used for metal flaw detection, Non-Destructive Testing (NDT), and piezoel.

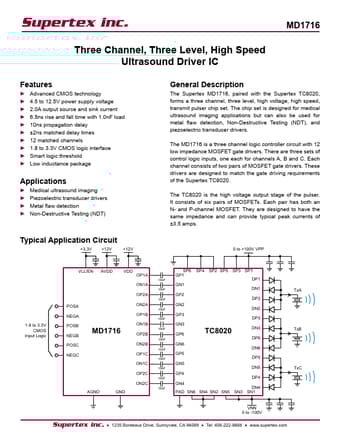

MD1716 Datasheet (367.67 KB)

Preview of MD1716 PDF

Datasheet Details

Part number:

MD1716

Manufacturer:

Supertex

File Size:

367.67 KB

Description:

Ultrasound driver ic.
