MD1213 Datasheet, Driver, Microchip

MD1213 Features

  • Driver
  • 6 ns Rise and Fall Time with 1000 pF Load
  • 2A Peak Output Source and Sink Currents
  • 1.8V to 5V Input CMOS Compatible
  • 4.5V to 13V Total Supply Volta

PDF File Details

Part number:

MD1213

Manufacturer:

Microchip ↗

File Size:

679.60kb

Download:

📄 Datasheet

Description:

High-speed dual-mosfet driver. The MD1213 is a high-speed dual-MOSFET driver. It is designed to drive high-voltage P-channel and N-channel MOSFETs for medical ultra

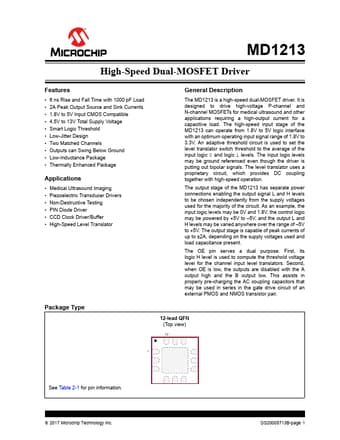

Datasheet Preview: MD1213 📥 Download PDF (679.60kb)
Page 2 of MD1213 Page 3 of MD1213

MD1213 Application

  • Applications
  • Medical Ultrasound Imaging
  • Piezoelectric Transducer Drivers
  • Non-Destructive Testing
  • PIN Diode D
