MD1822

High-Speed 4-Channel MOSFET Driver

MD1822 Features

* Mixed Inversion MOSFET Driver

* 6 ns Rise and Fall Time

* 2A Peak Output Source-and-Sink Current

* 1.8V to 5V Input CMOS Compatible

* 5V to 10V Total Supply Voltage

* Smart Logic Threshold

* Low-Jitter Design

* Four Matched Channels

MD1822 General Description

The MD1822 is a high-speed, four-channel MOSFET driver designed to drive high-voltage P-channel and N-channel MOSFETs for medical ultrasound applications and other applications requiring a highoutput current for a capacitive load. The high-speed input stage of the MD1822 can operate from a 1.8V to 5.

MD1822 Datasheet (622.90 KB)

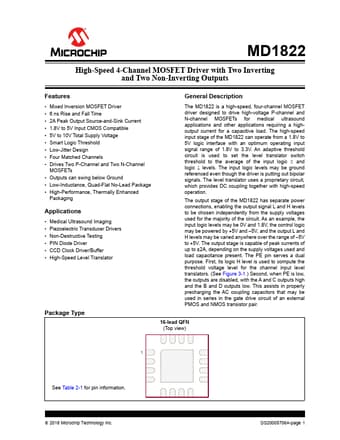

Preview of MD1822 PDF

Datasheet Details

Part number:

MD1822

Manufacturer:

Microchip ↗

File Size:

622.90 KB

Description:

High-speed 4-channel mosfet driver.
