MD1822 Datasheet - Supertex

High Speed Four Channel MOSFET Driver

MD1822 Features

* Mixed inversion MOSFET driver

* 6.0ns rise and fall time

* 2.0A peak output source/sink current

* 1.8 to 5.0V input CMOS compatible

* 5.0 to 10V total supply voltage

* Smart logic threshold

* Low jitter design

* Four matched c

MD1822 General Description

The Supertex MD1822 is a high speed, four channel MOSFET driver designed to drive high voltage P- and N-channel MOSFETs for medical ultrasound applications and other applications requiring a high output current for a capacitive load. The high-speed input stage of the MD1822 can operate from a 1.8 to.

MD1822 Datasheet (358.92 KB)

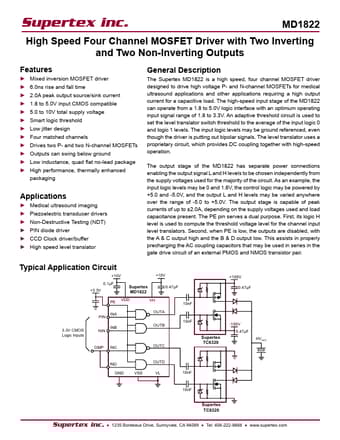

MD1822 Datasheet Preview — Preview of MD1822 PDF

Datasheet Details

Part number:

MD1822

Manufacturer:

Supertex

File Size:

358.92 KB

Description:

High speed four channel mosfet driver.
