* zCommon cathode structure zLow power loss, high efficiency zHigh Operating Junction Temperature zGuard ring for overvoltage protection，High reliability zRoHS product TO-22O TO-22OHF TO-22OBF ORDER MESSAGE Order codes Marking Package SBL2060Z SBL2060 TO-220 SBL2060ZR SBL2060 TO-220 SB
SBL2060BF Datasheet (546.98 KB)
SBL2060BF
Jilin Sino
546.98 KB
Schottky barrier diode.

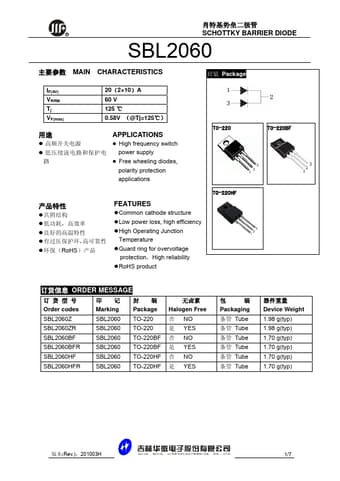

R SCHOTTKY BARRIER DIODE
SBL2060
MAIN CHARACTERISTICS
Package
IF(AV) VRRM Tj VF(max)
20（2×10）A
60 V 125 ℃ 0.58V （@Tj=125℃）
z z
APPLICATIO.
