JCS7N60F, JCS7N60C N-CHANNEL MOSFET

JCS7N60F Description

N R N-CHANNEL MOSFET JCS7N60 MAIN CHARACTERISTICS Package ID 7.0 A VDSS 600 V Rdson（@Vgs=10V） 1.2 Ω Qg 54 nC * * * LED .

JCS7N60F Features

* Low gate charge
* Low Crss (typical 23pF )
* Fast switching
* 100% avalanche tested
* Improved dv/dt capability
* RoHS product ORDER MESSAGE - Halogen-Tube JCS7N60B-B-B JCS7N60S-S-B JCS7N60C-C-B JCS7N60F-F-B Order codes - - Halogen-Free-Tube Halogen-Reel JCS7N60B-B-B

JCS7N60F Applications

* High efficiency switch mode power supplies
* Electronic lamp ballasts based on half bridge
* LED power supplies
* Crss ( 23pF)
* dv/dt

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: JCS7N60F, JCS7N60C. Please refer to the document for exact specifications by model.

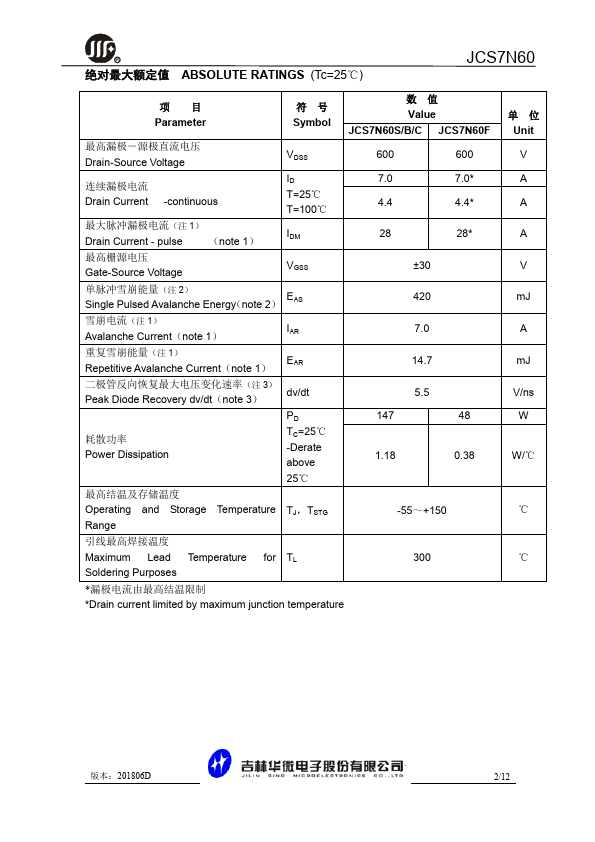

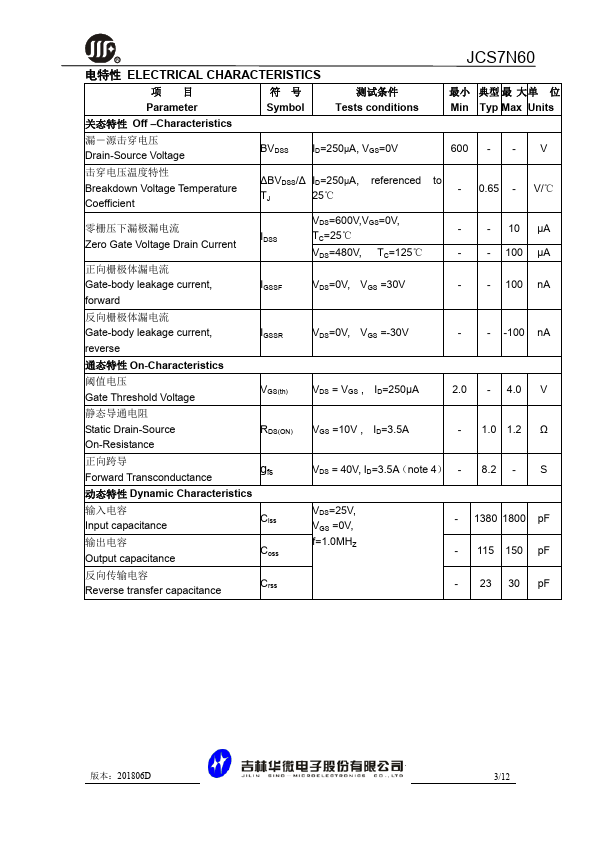

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
JCS7N60F, JCS7N60C
Manufacturer
JilinSino
File Size
710.90 KB
Datasheet
JCS7N60C-JilinSino.pdf
Description
N-CHANNEL MOSFET
Note
This datasheet PDF includes multiple part numbers: JCS7N60F, JCS7N60C.
Please refer to the document for exact specifications by model.
