JCS7N60R, JCS7N60E N-CHANNEL MOSFET

JilinSino

Description

N R N-CHANNEL MOSFET JCS7N60E MAIN CHARACTERISTICS Package ID VDSS Rdson-max （@Vgs=10V） Qg-typ 7.0 A 600 V 1.0Ω 23 nC * * * .

📥 Download Datasheet

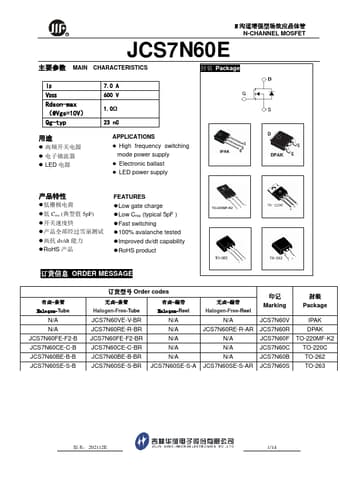

JCS7N60R Datasheet Preview — This datasheet PDF includes multiple part numbers: JCS7N60R, JCS7N60E. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: JCS7N60R, JCS7N60E
Manufacturer: JilinSino
File Size: 1.65 MB
Datasheet: JCS7N60E-JilinSino.pdf
Description: N-CHANNEL MOSFET
Note: This datasheet PDF includes multiple part numbers: JCS7N60R, JCS7N60E.
Please refer to the document for exact specifications by model.

Features

* Low gate charge
* Low Crss (typical 5pF )
* Fast switching
* 100% avalanche tested
* Improved dv/dt capability
* RoHS product ORDER MESSAGE - Halogen-Tube N/A N/A JCS7N60FE-F2-B JCS7N60CE-C-B JCS7N60BE-B-B JCS7N60SE-S-B Order codes - - Halogen-Free-Tube Halogen-Reel JCS

Applications

* High frequency switching mode power supply
* Electronic ballast
* LED power supply
* Crss ( 5pF)
* dv/dt
