2SD602A NPN Transistor

2SD602A Description

2SD602A TRANSISTOR (NPN) SOT *23 .

2SD602A Features

* Low Collector to Emitter Saturation Voltage
* Mini Type Package MAXIMUM RATINGS (Ta=25℃ unless otherwise noted) Symbol Parameter Value VCBO Collector-Base Voltage 60 VCEO Collector-Emitter Voltage 50 VEBO Emitter-Base Voltage 5 IC Collector Current 500 PC Collector Power Dissi

📥 Download Datasheet

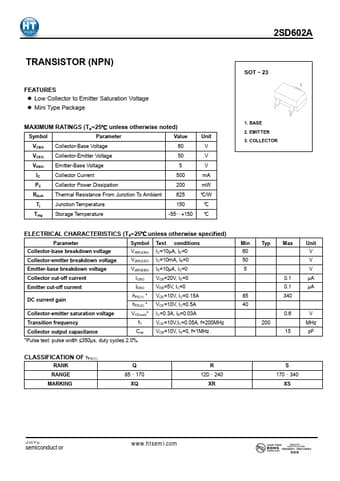

Preview of 2SD602A PDF

Datasheet Details

Part number
2SD602A
Manufacturer
JinYu
File Size
427.86 KB
Datasheet
2SD602A-JinYu.pdf
Description
NPN Transistor
