BAT46WFL

SCHOTTKY BARRIER RECTIFIERS

Jingdao

BAT46WFL Features

* High breakdown voltage

* Low turn-on voltage

* Guard ring construction for transient protection MECHANICAL DATA ▪Case: SOD-323FL ▪Terminals: Solderable per MIL-STD-750, Method 2026 ▪Approx. Weight: 4.5mg / 0.00016oz BAT46WFL PINNING PIN DESCRIPTION 1 Cathode 2 Anode 2 1 To

BAT46WFL General Description

1 Cathode 2 Anode 2 1 Top View Marking Code: S9 Simplified outline SOD-323FL and symbol Maximum Ratings at 25 °C Parameter Symbols Maximum Repetitive Peak Reverse Voltage VRRM Working peak reverse voltage VRWM Continuous Forward Current Repetitive peak forward current (Note 1) @ tp < 1.0s, Du.

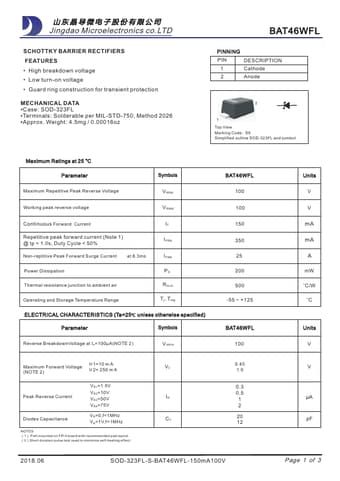

BAT46WFL Datasheet (80.96 KB)

BAT46WFL Datasheet Preview — Preview of BAT46WFL PDF

Datasheet Details

Part number:

BAT46WFL

Manufacturer:

Jingdao

File Size:

80.96 KB

Description:

Schottky barrier rectifiers.
