BAT46WH Single Schottky barrier diode

BAT46WH Description

BAT46WH Single Schottky barrier diode Rev.2 * 28 November 2011 Product data sheet 1.Product profile 1.1 General .
Single planar Schottky barrier diode with an integrated guard ring for stress protection, encapsulated in a small and flat lead SOD123F Surface-Mounte.

BAT46WH Features

* Low forward voltage
* Low capacitance
* Reverse voltage VR  100 V
* AEC-Q101 qualified

BAT46WH Applications

* High-speed switching
* Line termination
* Voltage clamping
* Reverse polarity protection 1.4 Quick reference data Table 1. Symbol VR VF IR Quick reference data Parameter reverse voltage forward voltage reverse current [1] Pulse test: tp  300 s;   0.02. 2. Pinning informat

📥 Download Datasheet

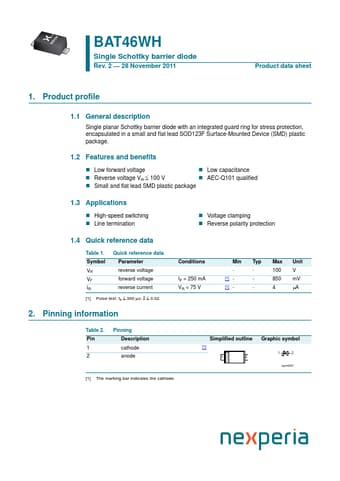

Preview of BAT46WH PDF
