BAT46WJ Single Schottky barrier diode

BAT46WJ Description

BAT46WJ Schottky barrier diode 1 October 2022 Product data sheet 1.General .
Planar Schottky barrier diode with an integrated guard ring for stress protection, encapsulated in a very small and flat lead SOD323F (SC-90) Surface-.

BAT46WJ Features

* Low forward voltage
* Reverse voltage VR ≤ 100 V
* Very small and flat lead SMD plastic package

BAT46WJ Applications

* High-speed switching
* Line termination
* Voltage clamping
* Reverse polarity protection 4. Quick reference data Table 1. Quick reference data Symbol Parameter VR reverse voltage VF forward voltage IR reverse current Conditions IF = 250 mA; tp ≤ 300 µs; δ

📥 Download Datasheet

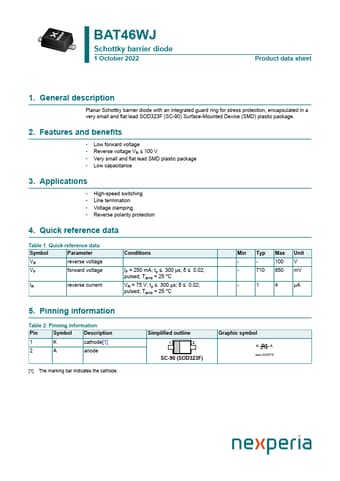

Preview of BAT46WJ PDF
