BAT120A - Schottky barrier double diodes

Datasheet Summary

Description

Planar Schottky barrier double diodes encapsulated in a SOT223 Surface-Mounted Device (SMD) plastic package.

2.

Features

  • Low switching losses.
  • Capability of absorbing very high surge current.
  • Fast recovery time.
  • Guard ring protected.
  • Plastic SMD package.
  • AEC-Q101 qualified 3.

📥 Download Datasheet

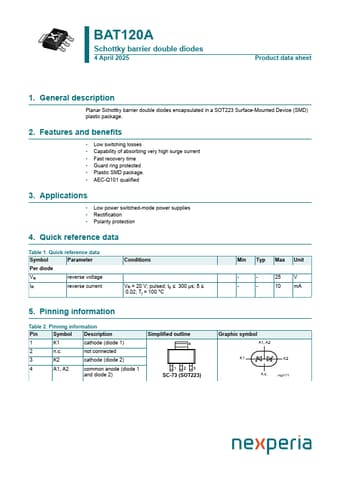

Datasheet preview – BAT120A

Datasheet Details

Part number BAT120A
Manufacturer nexperia
File Size 191.60 KB
Description Schottky barrier double diodes
Datasheet download datasheet BAT120A Datasheet

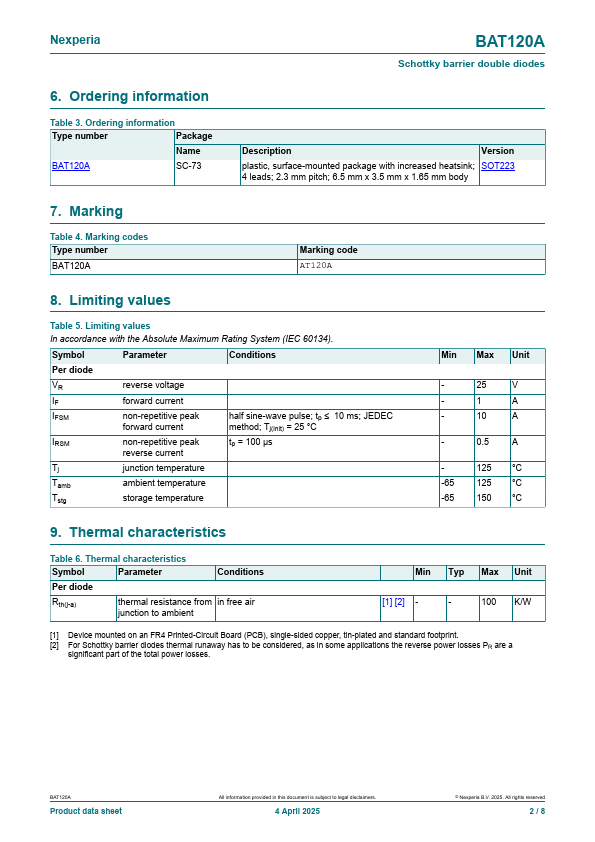

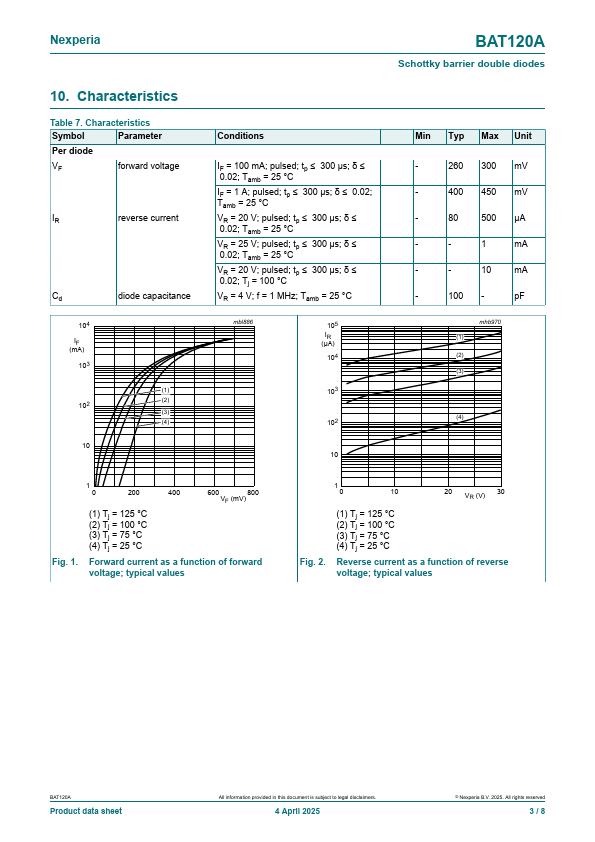

Additional preview pages of the BAT120A datasheet.

📁 Similar Datasheet

  • BAT120A - Schottky barrier double diodes (NXP)
  • BAT120 - Schottky barrier double diodes (NXP)
  • BAT120C - Schottky barrier double diodes (NXP)
  • BAT120S - Schottky barrier double diodes (NXP)
  • BAT1000 - 1A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Diodes Incorporated)
  • BAT114-099 - Silicon Dual Schottky Diode (Siemens Semiconductor Group)
  • BAT114-099R - Silicon Crossover Ring Quad Schottky Diode (Siemens Semiconductor Group)
  • BAT14 - HiRel Silicon Schottky Diode (Siemens Semiconductor Group)
  • BAT14 - Silicon Schottky Diode (Infineon Technologies AG)
  • BAT14-013 - HiRel Silicon Schottky Diode (Siemens Semiconductor Group)
Other Datasheets by nexperia
  • BAT165A - Schottky barrier rectifier
  • BAT32LS - General-purpose Schottky diode
  • BAT46GW - 250mA Schottky barrier diode
  • BAT46WH - Single Schottky barrier diode
  • BAT46WJ - Single Schottky barrier diode
  • BAT54 - Schottky barrier diodes
  • BAT54A - Schottky barrier diode
  • BAT54A-Q - Schottky barrier diode

Full PDF Text Transcription

Click to expand full text

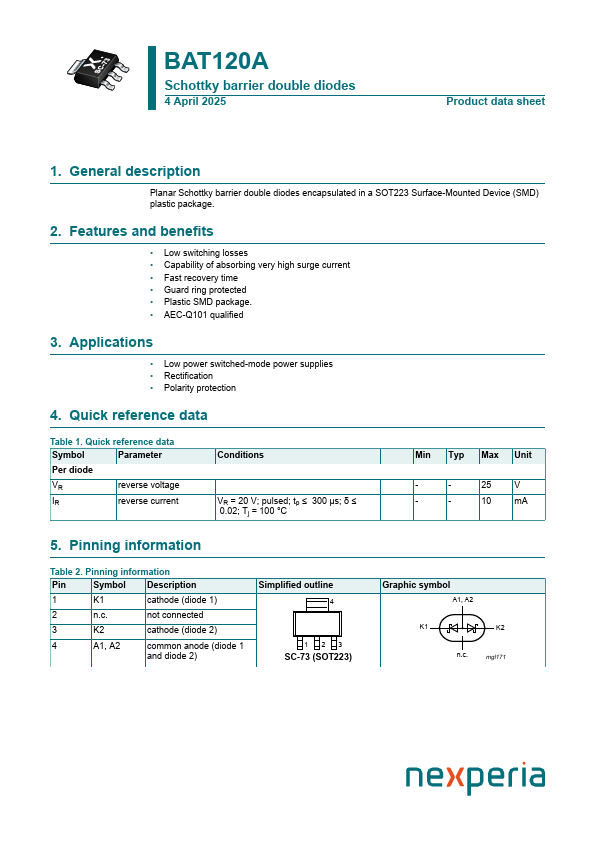

BAT120A Schottky barrier double diodes 4 April 2025 Product data sheet 1. General description Planar Schottky barrier double diodes encapsulated in a SOT223 Surface-Mounted Device (SMD) plastic package. 2. Features and benefits • Low switching losses • Capability of absorbing very high surge current • Fast recovery time • Guard ring protected • Plastic SMD package. • AEC-Q101 qualified 3. Applications • Low power switched-mode power supplies • Rectification • Polarity protection 4. Quick reference data Table 1. Quick reference data Symbol Parameter Per diode VR reverse voltage IR reverse current Conditions VR = 20 V; pulsed; tp ≤ 300 µs; δ ≤ 0.02; Tj = 100 °C Min Typ Max Unit - - 25 V - - 10 mA 5. Pinning information Table 2.
