BAT120C

Schottky barrier double diodes

NXP

BAT120C Features

* Low switching losses

* Capability of absorbing very high surge current

* Fast recovery time

* Guard ring protected

* Plastic SMD package. APPLICATIONS

* Low power switched-mode power supplies

* Rectification

* Polarity protection. DES

BAT120C General Description

Planar Schottky barrier double diodes encapsulated in a SOT223 plastic SMD package 1 2 3 MSB002 - 1 BAT120 series PINNING BAT120 PIN A 1 2 3 4 k1 n.c. k2 a1, a2 C a1 n.c. a2 k1, k2 S a1 n.c. k2 k1, a2 Fig.2 BAT120A diode configuration (symbol). 2 n.c. MGL171 4 page 1 3 age 4 page 4 1 3 2 n..

BAT120C Datasheet (68.32 KB)

BAT120C Datasheet Preview — Preview of BAT120C PDF

Datasheet Details

Part number:

BAT120C

Manufacturer:

NXP ↗

File Size:

68.32 KB

Description:

Schottky barrier double diodes.

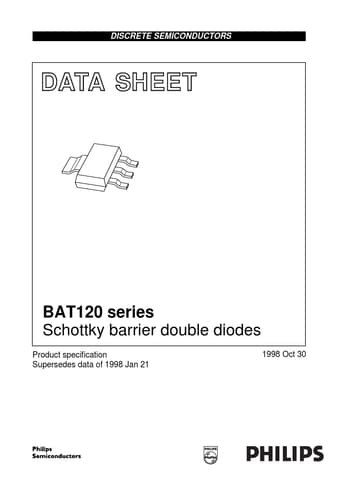

DISCRETE SEMICONDUCTORS DATA SHEET halfpage M3D087 BAT120 series Schottky barrier double diodes Product speciﬁcation Supersedes data of 1998 Jan 21.
