MSB20D

2A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER

Jingdao

MSB20D Features

* Glass Passivated Chip Junction

* Reverse Voltage - 100 to 1000 V

* Forward Current - 2.0 A

* High Surge Current Capability

* Designed for Surface Mount Application MECHANICAL DATA

* Case: UMSB

* Terminals: Solderable per MIL-STD-750, Method

MSB20D General Description

1 Output Anode（+） 2 Output Cathode（-） 3 Input Pin（~） 4 Input Pin（~） 1 （-2） 3 UMSB Package 4 ~ （3）（+1） ~ （4） Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified. Single phase half-wave 60 Hz, resistive or inductive load, for capacitive l.

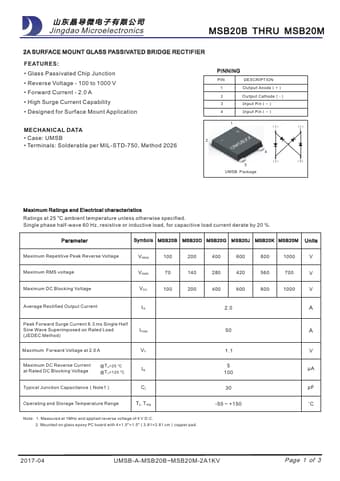

MSB20D Datasheet (114.90 KB)

MSB20D Datasheet Preview — Preview of MSB20D PDF

Datasheet Details

Part number:

MSB20D

Manufacturer:

Jingdao

File Size:

114.90 KB

Description:

2a surface mount glass passivated bridge rectifier.
