MSB20G, MSB20B 2A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER

MSB20G Description

Jingdao Microelectronics MSB20B THRU MSB20M 2A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER .
1 Output Anode（+） 2 Output Cathode（-） 3 Input Pin（~） 4 Input Pin（~） 1 （-2） 3 UMSB Package 4 ~ （3） （+1） ~ （4） Maximum Ratings and Electrical charac.

MSB20G Features

* Glass Passivated Chip Junction
* Reverse Voltage - 100 to 1000 V
* Forward Current - 2.0 A
* High Surge Current Capability

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MSB20G, MSB20B. Please refer to the document for exact specifications by model.

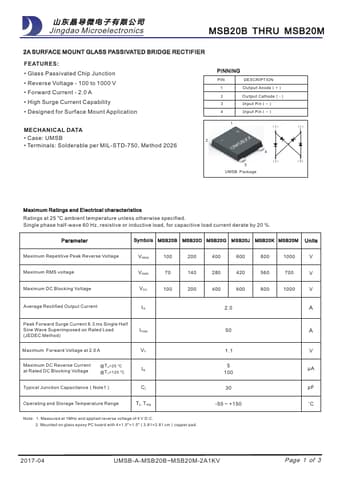

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MSB20G, MSB20B
Manufacturer
Jingdao
File Size
114.90 KB
Datasheet
MSB20B-Jingdao.pdf
Description
2A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER
Note
This datasheet PDF includes multiple part numbers: MSB20G, MSB20B.
Please refer to the document for exact specifications by model.
