HC875SG-011 Datasheet - Johnson Motor

HC875SG-011 - Low Voltage DC Motor

HC875SG-011 Characteristics: High Power DC motor Specifications: Dimensions Shaft Diameter Input Voltage No Load Speed No Load Current Stall Torque Stall Current Maximum Output Power Maximum Efficiency Speed at Maximum Efficiency Weight Operation Temperature Storage Temperature Electrical Connection : Ø 48.0 X 50.5 mm : Ø 4.005 mm : 14.4 V DC : 20120 rpm : 3.80 A : 787.72 mNm : 124.99 A : 415.00 W : 66 % : 17000 rpm : 320 g : -10 to 55 °C : -20 to 80 °C : Lead wire Performance Data: No Load

HC875SG-011-JohnsonMotor.pdf

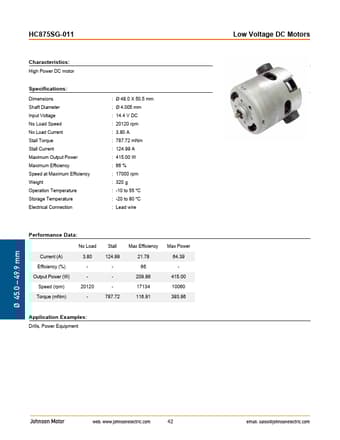

Preview of HC875SG-011 PDF
HC875SG-011 Datasheet Preview Page 2

Datasheet Details

Part number:

HC875SG-011

Manufacturer:

Johnson Motor

File Size:

129.90 KB

Description:

Low voltage dc motor.
