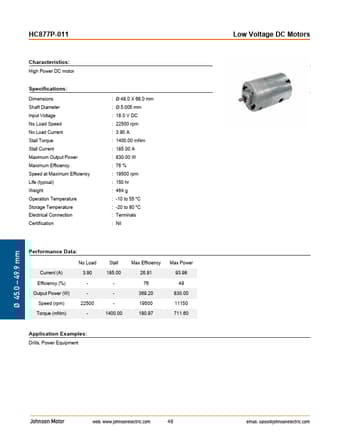

HC877P-011 Datasheet - Johnson Motor

HC877P-011 Low Voltage DC Motor

HC877P-011 Characteristics: High Power DC motor Specifications: Dimensions Shaft Diameter Input Voltage No Load Speed No Load Current Stall Torque Stall Current Maximum Output Power Maximum Efficiency Speed at Maximum Efficiency Life (typical) Weight Operation Temperature Storage Temperature Electrical Connection Certification : Ø 48.0 X 68.0 mm : Ø 5.005 mm : 18.0 V DC : 22500 rpm : 3.90 A : 1400.00 mNm : 185.00 A : 830.00 W : 76 % : 19500 rpm : 150 hr : 464 g : -10 to 55 °C : -20 to 80 °C : .
