HC8050S Datasheet - SHANTOU HUASHAN ELECTRONIC

HC8050S NPN SILICON TRANSISTOR

NPN S I L I C O N T RA N S I S T O R www.DataSheet4U.com Shantou Huashan Electronic Devices Co.,Ltd. HC8050S APPLICATIONS Audio Frequency Amplifier. ABSOLUTE MAXIMUM RATINGS（Ta=25℃） T stg Storage Temperature ………………………… -55~150 ℃ Tj Juncttion Temperature …………………………………150℃ P C Collector Dissipation ………………………………… 625W VCBO Collector-Base Voltage ………………………………40V VCEO Collector-Emitter Voltage……….

HC8050S Datasheet (155.02 KB)

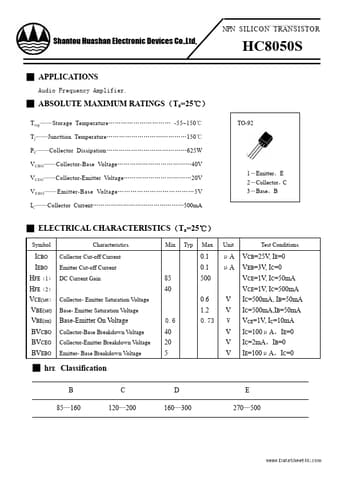

Preview of HC8050S PDF
HC8050S Datasheet Preview Page 2

Datasheet Details

Part number:

HC8050S

Manufacturer:

SHANTOU HUASHAN ELECTRONIC

File Size:

155.02 KB

Description:

Npn silicon transistor.
