JW1233

Adaptive 100/120Hz Current Ripple Remover

JW1233 Features

* DESCRIPTION Adaptive 100/120Hz current ripple remover Input voltage range 5V~60V Built-in 60V power MOSFET LED voltage low to 0.4V when LED current is 0.35A Programmable LED current ripple Programmable maximum LED cathode voltage Internal LED voltage limit Internal LED current limit Short/Open pro

JW1233 General Description

Adaptive 100/120Hz current ripple remover Input voltage range 5V~60V Built-in 60V power MOSFET LED voltage low to 0.4V when LED current is 0.35A Programmable LED current ripple Programmable maximum LED cathode voltage Internal LED voltage limit Internal LED current limit Short/Open protection Hot p.

JW1233 Datasheet (483.10 KB)

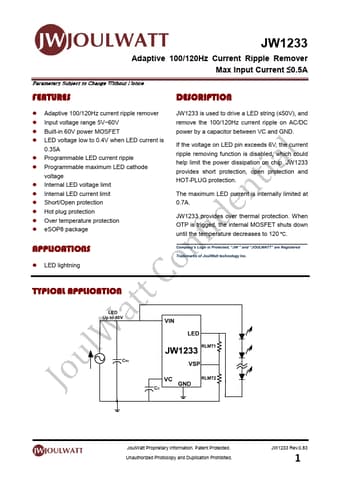

Preview of JW1233 PDF

Datasheet Details

Part number:

JW1233

Manufacturer:

JoulWatt

File Size:

483.10 KB

Description:

Adaptive 100/120hz current ripple remover.
