JW1237 - Adaptive 100/120Hz Current Ripple Remover

JW1237 Description

JW1237 Adaptive 100/120Hz Current Ripple Remover With High Voltage MOSFET Integrated Parameters Subject to Change Without Notice .
JW1237, integrated with 150V NMOSFET, is used to drive a LED string, and remove the 100/120Hz LED current ripple on AC/DC power by a capacitor between.

JW1237 Features

* Adaptive 100/120Hz current ripple remover 150V high voltage NMOSFET integrated Built-in zener diode for input voltage clamping VG output voltage high to 10V Programmable amplitude of LED current ripple Programmable maximum cathode voltage of LED Programmable maximum LED current Short protection Over

JW1237 Applications

* LED lighting TYPICAL APPLICATION 600mA 25K Ohm 2512 600 uF 100 V 1uF 50 V 0805 VIN 100K Ohm VLMT0603 GND VC VS 2 .2uF 6.3V 0603 0.1R 2512 JW1237 LED- LEDVG 10nF 50V 0603 JW1237 Rev.0.83 JoulWatt Proprietary Information. Patent Protected. 1 Unauthorized Photocopy and Duplication Prohib

📥 Download Datasheet

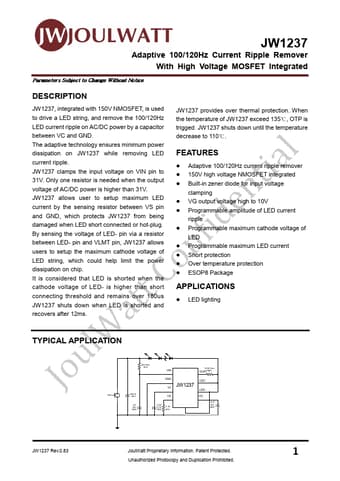

Preview of JW1237 PDF
