JW16979C Datasheet - JoulWatt

TRIAC Dimmable Linear LED Driver

JW16979C Features

* Direct Line Operation

* Integrated 500V Bleeder

* High Efficiency Bleeding Technics

* Dimmer Detection Integrated

* Good Dimmer Compatibility

* No EMI Issues.

* Low BOM Cost

* Over Thermal Protection

* ESOP8 Package APPLICATIONS

* LED lighting TYPICAL APPLI

JW16979C General Description

JWĀ®16979C is a TRIAC dimmable single channel linear LED driver with patented Smart Bleeder technics. JW16979C supplies from the line voltage directly which enables the normal operation in all dimming range. With patented algorithms, JW16979C can largely decrease the power loss of the bleeder circuit.

JW16979C Datasheet (545.09 KB)

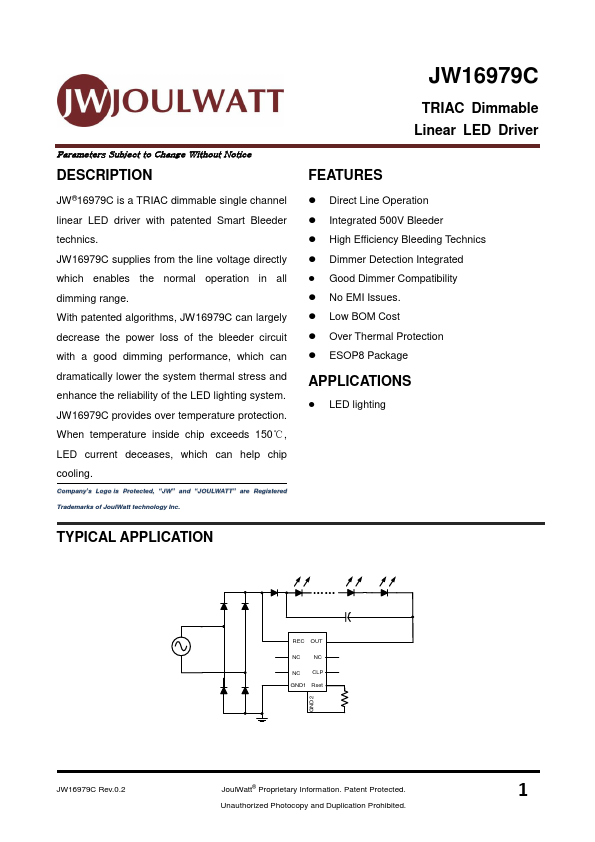

Preview of JW16979C PDF

Datasheet Details

Part number:

JW16979C

Manufacturer:

JoulWatt

File Size:

545.09 KB

Description:

Triac dimmable linear led driver.

šŸ“ Related Datasheet

JW1691D Dual-channel linear LED driver (JoulWatt)

JW1602 Multi-topology LED Controller (JoulWatt)

JW1609 Multi-topology LED Controller (JoulWatt)

JW1660A Isolated Flyback LED Driver Regulator (JoulWatt)

JW1660B Isolated Flyback LED Driver Regulator (JoulWatt)

JW1660C Isolated Flyback LED Driver Regulator (JoulWatt)

JW1660M Isolated Flyback LED Driver Regulator (JoulWatt)

JW1120 20V Synchronous Buck LED Driver (JoulWatt)

JW1210 Scalable Adaptive 100/120Hz Current Ripple Remover (JoulWatt)

JW1220 Controller for Adaptive 100/120Hz Current Ripple Removing Circuit (JoulWatt)

TAGS

JW16979C TRIAC Dimmable Linear LED Driver JoulWatt

Image Gallery

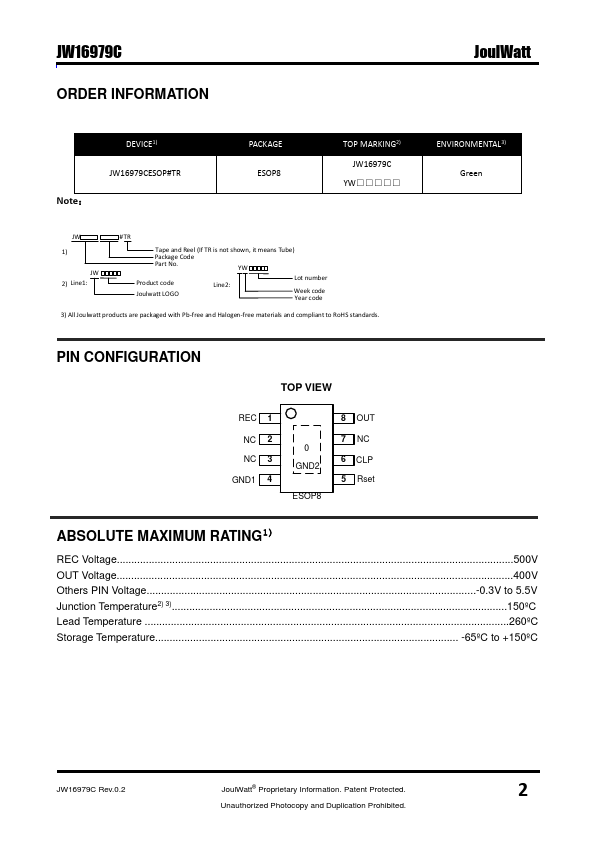

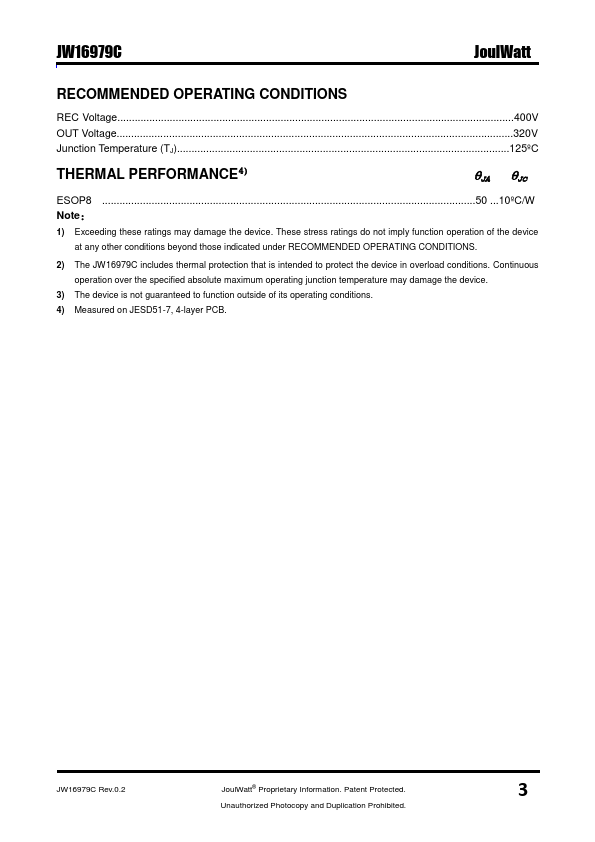

JW16979C Datasheet Preview Page 2 JW16979C Datasheet Preview Page 3
