KA101-54, KA101-01, 400 - 2700MHz Medium Power Amplifier

KA101-01, -10, -54 400-2700 MHz Medium Power Amplifier .
The KA101 a high performance, ultra-wideband, medium power GaAs pHEMT amplifier with low noise, high linearity and high efficiency.

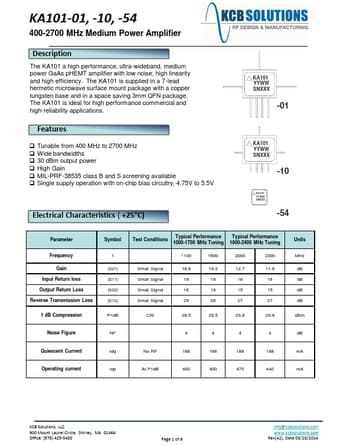

datasheet Preview Page 1 from Datasheet4u.com

KA101-01-KCB.pdf

KA101-54 Datasheet Preview — This datasheet PDF includes multiple part numbers: KA101-54, KA101-01. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

KA101-54, KA101-01

Manufacturer:

KCB

File Size:

821.70 KB

Description:

400 - 2700MHz Medium Power Amplifier

Note:

This datasheet PDF includes multiple part numbers: KA101-54, KA101-01.
Please refer to the document for exact specifications by model.

Features

* ❑ Tunable from 400 MHz to 2700 MHz ❑ Wide bandwidths ❑ 30 dBm output power ❑ High Gain ❑ MIL-PRF-38535 class B and S screening available ❑ Single supply operation with on-chip bias circuitry, 4.75V to 5.5V Electrical Characteristics ( +25°C) KA101 YYWW SNXXX -01 KA101 YYWW SNXXX -10 KA101 YYWW SN
