1SMA5957B, 1SMA5913B 1.5W SURFACE MOUNT SILICON ZENER DIODE

1SMA5957B Description

1SMA5913B THRU 1SMA5957B 1.5W SURFACE MOUNT SILICON ZENER DIODE .

1SMA5957B Features

* :
* Complete Voltage Range 3.3 to 240 Volts
* High peak reverse power dissipation
* High reliability
* Low leakage current
* Pb / RoHS Free MECHANICAL DATA :
* Case : SMA Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Polarity : Color band denotes cathode end

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1SMA5957B, 1SMA5913B. Please refer to the document for exact specifications by model.

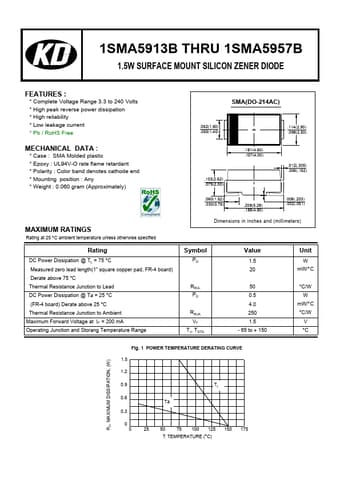

datasheet Preview Page 2

Datasheet Details

Part number
1SMA5957B, 1SMA5913B
Manufacturer
KD
File Size
572.88 KB
Datasheet
1SMA5913B-KD.pdf
Description
1.5W SURFACE MOUNT SILICON ZENER DIODE
Note
This datasheet PDF includes multiple part numbers: 1SMA5957B, 1SMA5913B.
Please refer to the document for exact specifications by model.
