GBJ2502, GBJ25005, GLASS PASSIVATED BRIDGE RECTIFIER

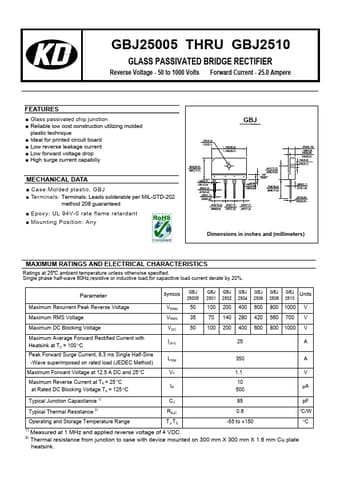

GBJ25005 THRU GBJ2510 GLASS PASSIVATED BRIDGE RECTIFIER Reverse Voltage - 50 to 1000 Volts Forward Current - 25.0 Ampere .

GBJ25005-KD.pdf

GBJ2502 Datasheet Preview — This datasheet PDF includes multiple part numbers: GBJ2502, GBJ25005. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

GBJ2502, GBJ25005

Manufacturer:

File Size:

898.09 KB

Description:

GLASS PASSIVATED BRIDGE RECTIFIER

Note:

This datasheet PDF includes multiple part numbers: GBJ2502, GBJ25005.
Please refer to the document for exact specifications by model.

Features

* Glass passivated chip junction
* Reliable low cost construction utilizing molded plastic technique
* Ideal for printed circuit board
* Low reverse leakage current
* Low forward voltage drop
* High surge current capabiliy MECHANICAL DATA
* Case:Molded plastic, GBJ
