KGF20N60KDA - IGBT

KGF20N60KDA Description

SEMICONDUCTOR TECHNICAL DATA General .
KEC Field Stop Trench IGBTs offer low switching losses, high energy efficiency and short circuit ruggedness.

KGF20N60KDA Features

* High speed switching High ruggedness, temperature stable behavior Short Circuit Withstand Times 10us Extremely enhanced avalanche capability KGF20N60KDA MAXIMUM RATING (Ta=25 ) CHARACTERISTIC SYMBOL RATING UNIT Collector-Emitter Voltage VCES 600 V Gate-Emitter Voltage VGES 20 V Collector C

📥 Download Datasheet

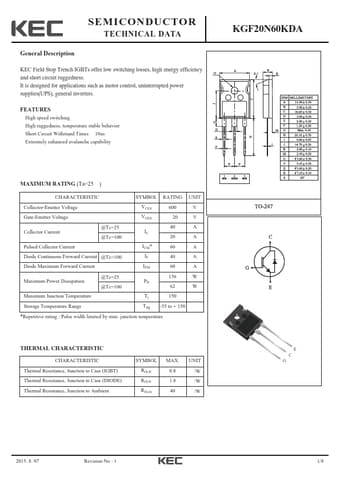

Preview of KGF20N60KDA PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KGF20N60KDA
Manufacturer
KEC
File Size
1.49 MB
Datasheet
KGF20N60KDA-KEC.pdf
Description
IGBT
