KGF2441 Datasheet, Amplifier, OKI electronic componets

KGF2441 Features

  • Amplifier
  • Wide dynamic range: 80 dB (min.)
  • Excellent gain slope linearity for AGC voltage
  • Low current operation: 5 V, 5 mA (typ.)
  • Package: 8PSOP PACKAGE D

PDF File Details

Part number:

KGF2441

Manufacturer:

OKI electronic componets

File Size:

88.55kb

Download:

📄 Datasheet

Description:

Agc amplifier. The KGF2441 is a GaAs FET AGC amplifier offering a wide dynamic range of ≥80 dB. With control over a +30 dB (max.) to

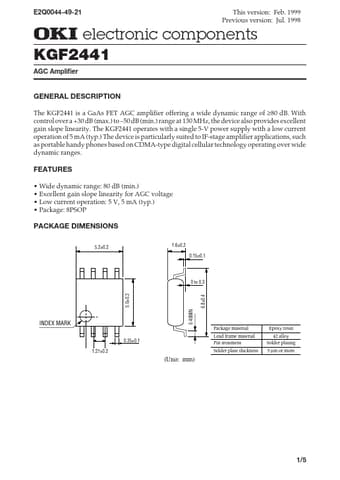

Datasheet Preview: KGF2441 📥 Download PDF (88.55kb)
Page 2 of KGF2441 Page 3 of KGF2441

KGF2441 Application

  • Applications such as portable handy phones based on CDMA-type digital cellular technology operating over wide dynamic ranges. FEATURES
  • W
